AMC1602GR-B-B6WTDW (16×2 Character LCD Module)
$7.21CONTACT FOR VOLUME PRICING
220 in stock
- Number of Characters: 16 x 2
- LCD mode: STN Negative Blue
- Polarizer: Transmissive
- Backlight: White LED
- White Character on Blue Background
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $6.38 |
| 50-99 | $5.54 |
| 100-149 | $5.11 |
| 150-199 | $4.76 |
| 200- | $4.4 |
Contact us for larger volume orders and any other enquiries.
Description
A 16×2 dot matrix Character LCD Module display in STN Negative Blue LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transmissive polarizer suitable for darker environment. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
16×2 Character LCD Module AMC1602GR-B-B6WTDW
The highest quality product AMC1602GR-B-B6WTDW at the lowest price.
- STN Negative Blue
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transmissive Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant

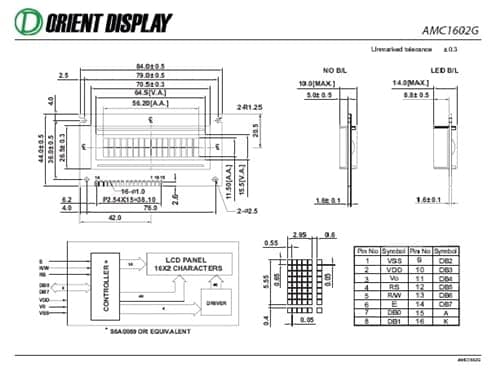

| Model/Series Name | AMC1602GR-B-B6WTDW-STY |
| Characters Displayed x Lines | 16 x 2 |
| LCD Mode | STN Negative Blue |
| Polarizer Type | Transmissive |
| Module Size WxHxT max(mm) | 84.0 x 44.0 x 14.0 |
| View Area WxH (mm) | 64.5.0 x 15.5 |
| Character Size WxH (mm) | 2.95 x 5.55 |
| Backlight | White LED |
| Controller | ST7066Uv22 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.42 lbs |
|---|---|
| Dimensions | 44 × 84 × 14 mm |
| backlightcolor | |
| characterxlines | |
| displaymode | |
| displaytype | |
| polarizertype | |
| touchpanel | |
| viewingdirection |
Reviews (0)
Shipping & Delivery
Related products
AMC1601AR-B-Y6NFDY (16×1 Character LCD Module)
- Number of Characters: 16 x 1
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
AMC0802DR-B-Y6WRN (8×2 Character LCD Module)
- Number of Characters: 8 x 2
- LCD mode: STN Positive Yellow Green
- Polarizer: Reflective
- Backlight: None
- Dark Character on Yellow Green Background
- IC Package Type: COB
AMC1602AR-B-Y6WFDY-I2C (16×2 Character LCD Module – I2C Interface)
- Number of Characters: 16 x 2
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
AMC1602BR-B-Y6WFDY (16×2 Character LCD Module)
- Number of Characters: 16 x 2
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB

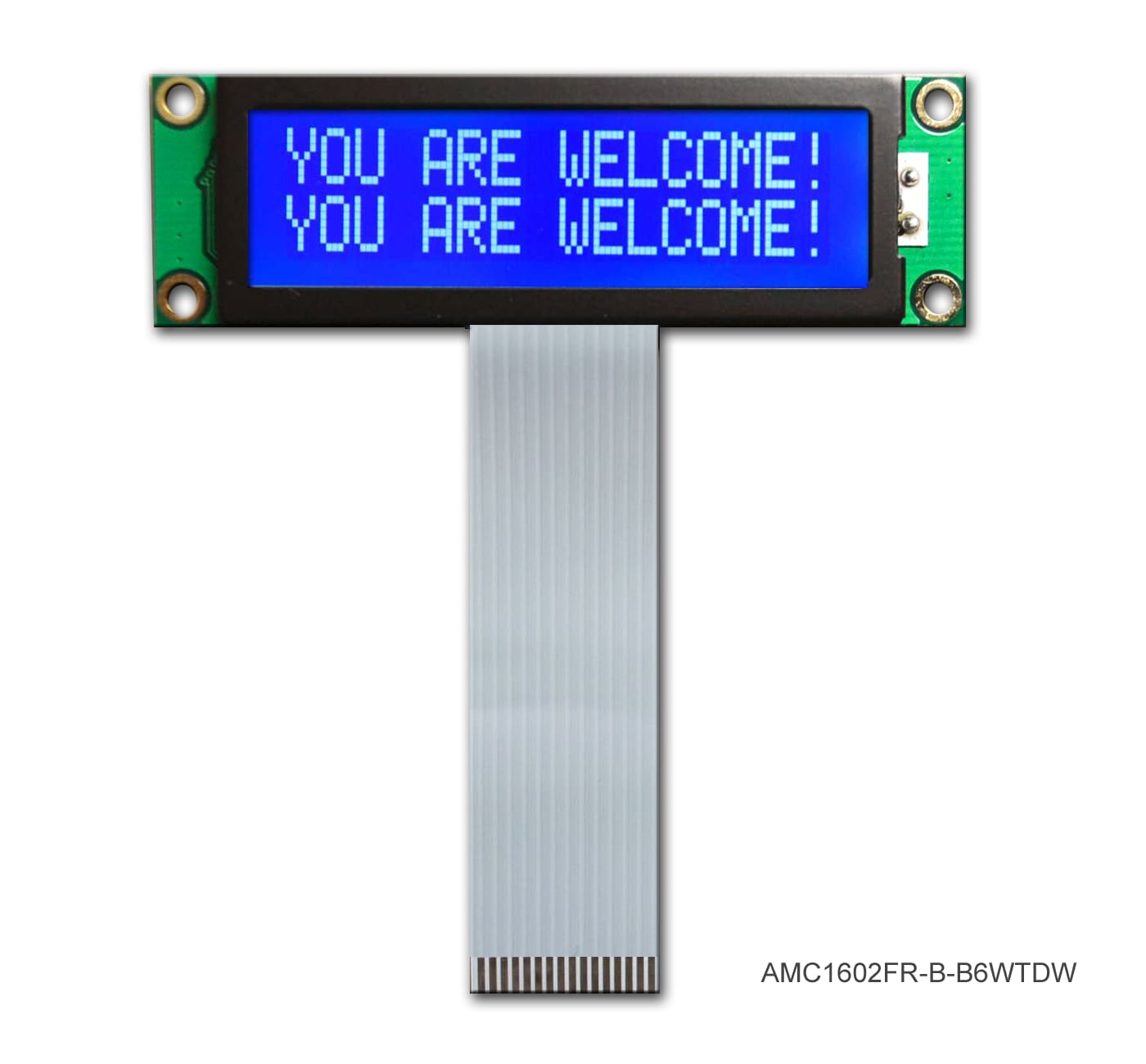

AMC1602FR-B-B6WTDW (16×2 Character LCD Module)
