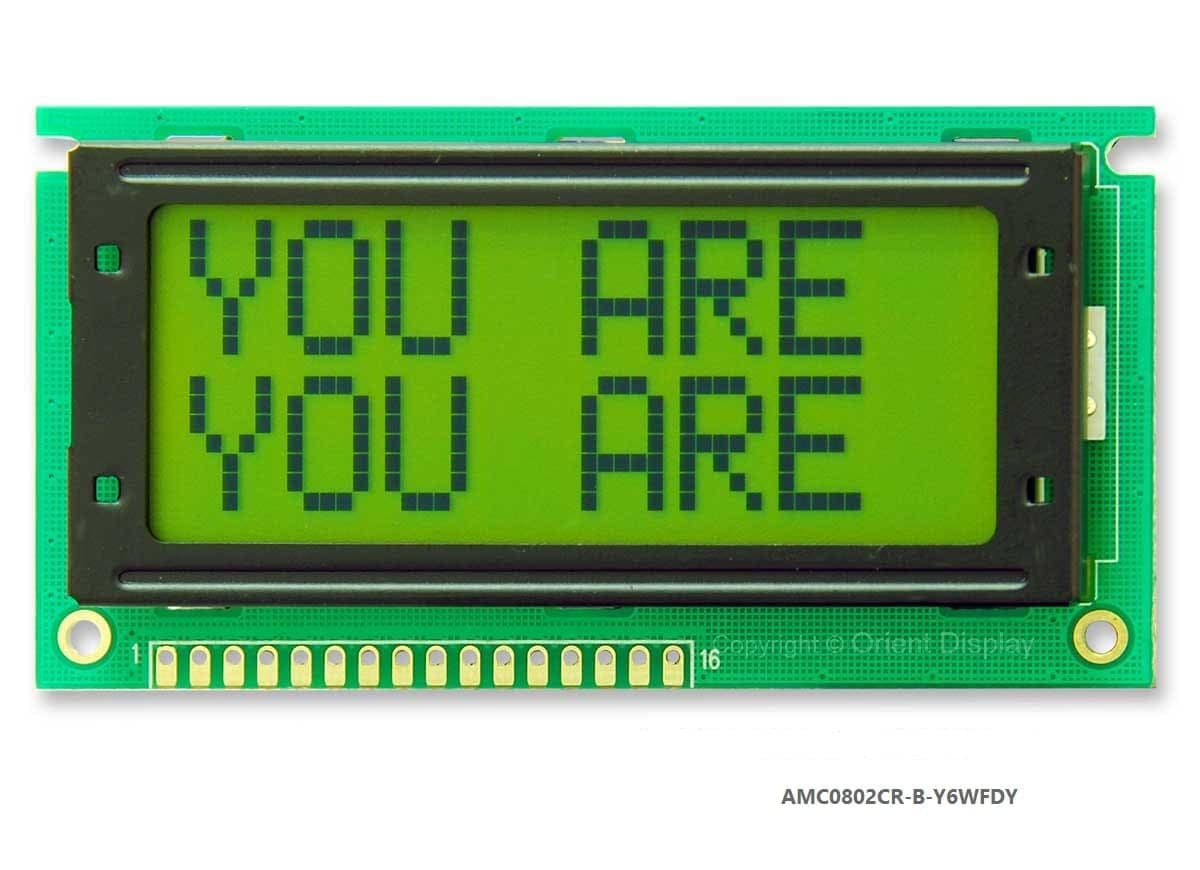

AMC0802CR-B-Y6WFDY (8×2 Character LCD Module)
$7.65CONTACT FOR VOLUME PRICING
290 in stock
- Number of Characters: 8 x 2
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $6.78 |
| 50-99 | $5.9 |
| 100-149 | $5.45 |
| 150-199 | $5.08 |
| 200- | $4.7 |
Contact us for larger volume orders and any other enquiries.
Description
An AMC0802CR-B-Y6WFDY 8×2 dot matrix Character LCD Module display in STN Positive Yellow-green LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow-green LED Backlight. It has a transflective polarizer suitable for indoor and outdoor usage. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
AMC0802CR-B-Y6WFDY (8×2 Character LCD Module)
The highest quality product at the lowest price.
- STN Positive Yellow-green
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow-green LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC0802C |
| Characters Displayed x Lines | 8 x 2 |
| LCD Mode | STN Positive Yellow-green |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 84.0 x 44.0 x 14.0 |
| View Area WxH (mm) | 63.0 x 25.0 |
| Character Size WxH (mm) | 6.07 x 11.44 |
| Backlight | Yellow-green LED |
| Controller | S6A0069 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.48 lbs |
|---|---|
| Dimensions | 44 × 84 × 14 mm |
| backlightcolor | |
| characterxlines | |
| displaymode | |
| displaytype | |
| polarizertype | |
| touchpanel | |
| viewingdirection |
