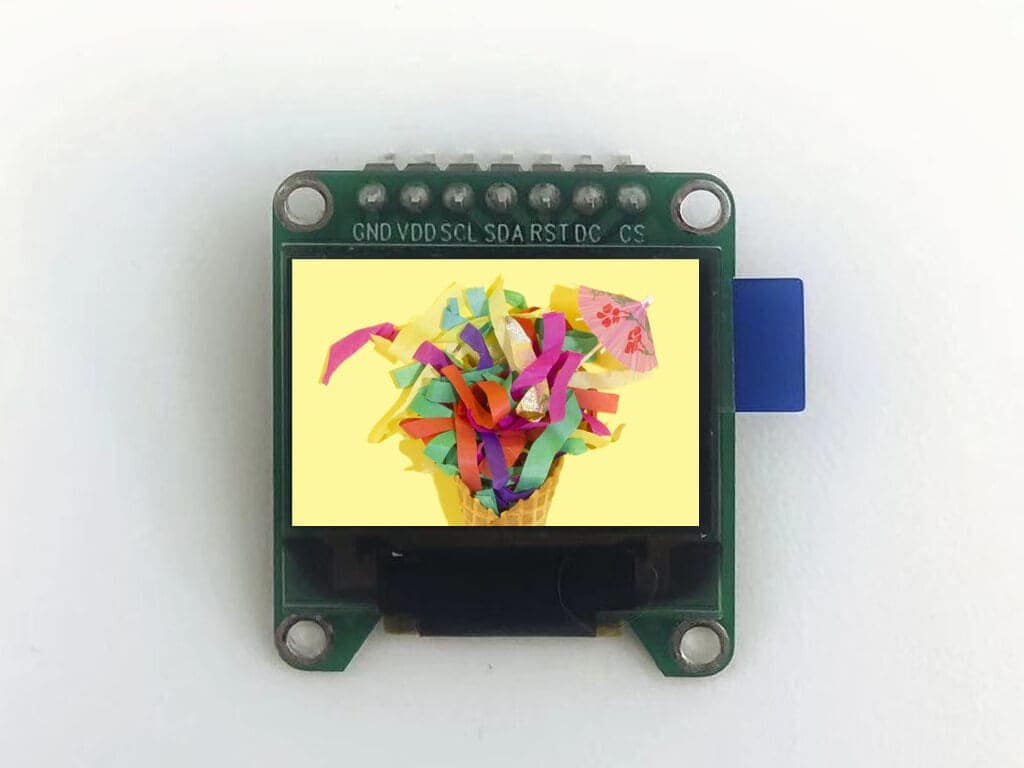

0.95” Arduino OLED Displays, 96×64, Color RGB, 4-Wire SPI Interface
$10.20CONTACT FOR VOLUME PRICING
7 in stock
- Passive Matrix OLED
- Diagonal Dimension: 0.95 Inch
- Resolution: 96 x 64 pixels
- Interface: 4-wire SPI / Compatible Arduino
- Luminance: 60 cd/m2
- Viewing Direction: All
- Touch Panel: None
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $9.72 |
| 50- | $9.23 |
Contact us for larger volume orders and any other enquiries.
Description
A simple 0.95″ Passive Matrix OLED, 4-line SPI and Arduino Compatible, Color RGB / All viewing direction / with 96 x 64 dots.
0.95″ Arduino OLED Displays
The highest quality product at the lowest price. Ships from the USA.
- 0.95″ OLED, 96 x 64
- All Viewing Direction
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AOC9664A0-0.95W-ANO
Controller Datasheet:SSD1311
Optional Accessory: TBD
| Model / Series Name | |
| Diagonal Dimension (Inches) | 0.83 |
| Dots WxH | 96 x 64 |
| Module Size WxHxD max (mm) | 27.3 x 30.7 x 5.5 |
| Display Mode | OLED |
| IC | SSD1311 |
| Interface Type | 4-wire SPI / Arduino Compatible |
| Logic Power Supply Voltage | 3.3V |
| Backlight | / |
| Luminance | 60 cd/m2 |
| Touch Panel | None |
These are just few of our famous OLED displays; we still have a lot of OLED products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
