HomeTouch PanelsCapacitive Touch Panels Displays 7.0” Capacitive Touch Panel CTP070
Previous product
3.5'' Capacitive Touch Panel CTP035 $16.00 $12.80
Back to products
Next product
3.5” Capacitive Touch Panel CTP035B0 $16.00

7.0” Capacitive Touch Panel CTP070

$22.41 $17.92CONTACT FOR VOLUME PRICING

24 in stock

  • Final sale: Non-refundable.
  • Product is EOL, Do not suggest for new design.
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 800 x 480 pixels
  • Interface: I2C
  • Touch Panel: Capacitive
Compare
Add to wishlist
SKU: CTP070 Categories: Capacitive Touch Panels Displays, On sale, Touch Panels
Share
Facebook Email linkedin

Description

(Final Sale)

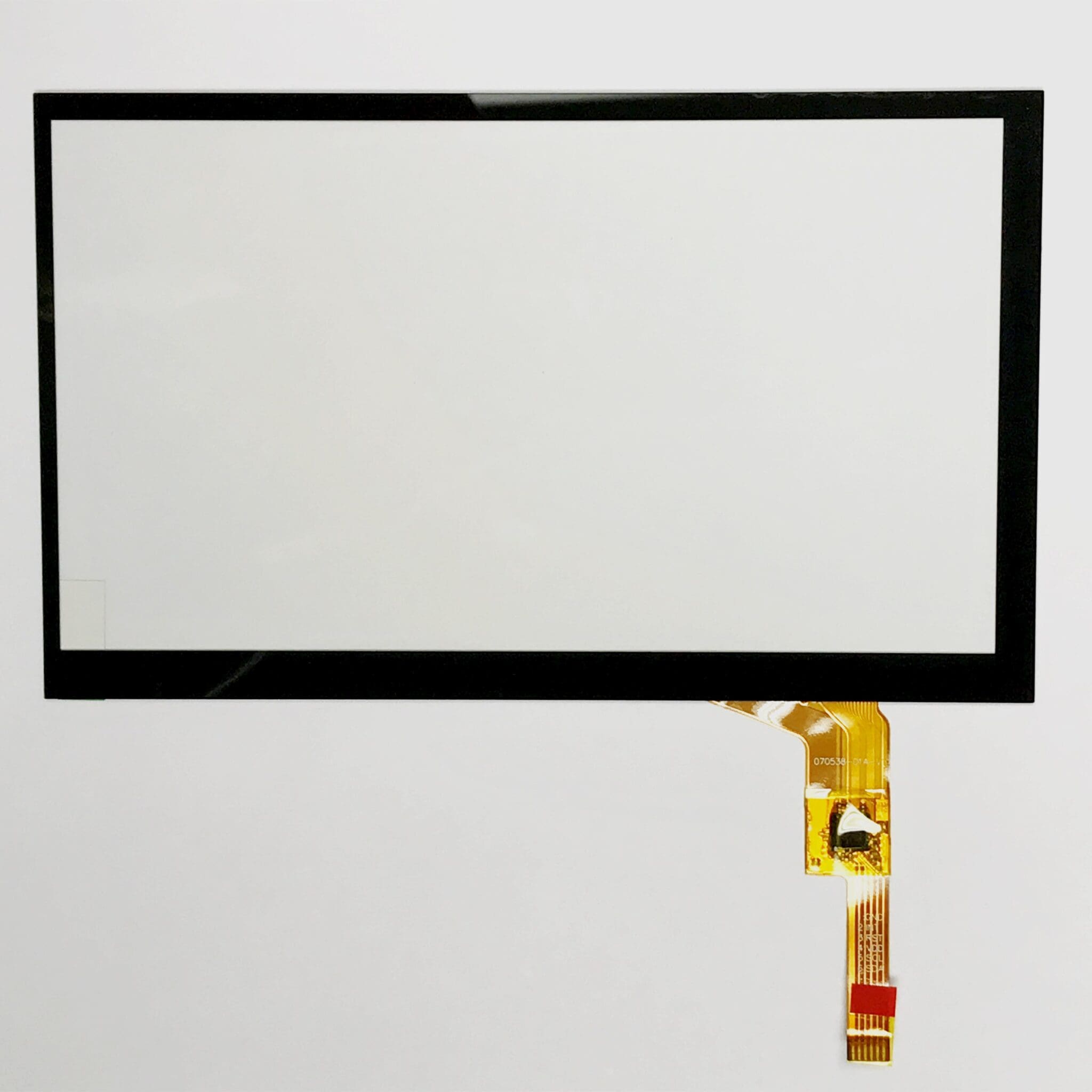

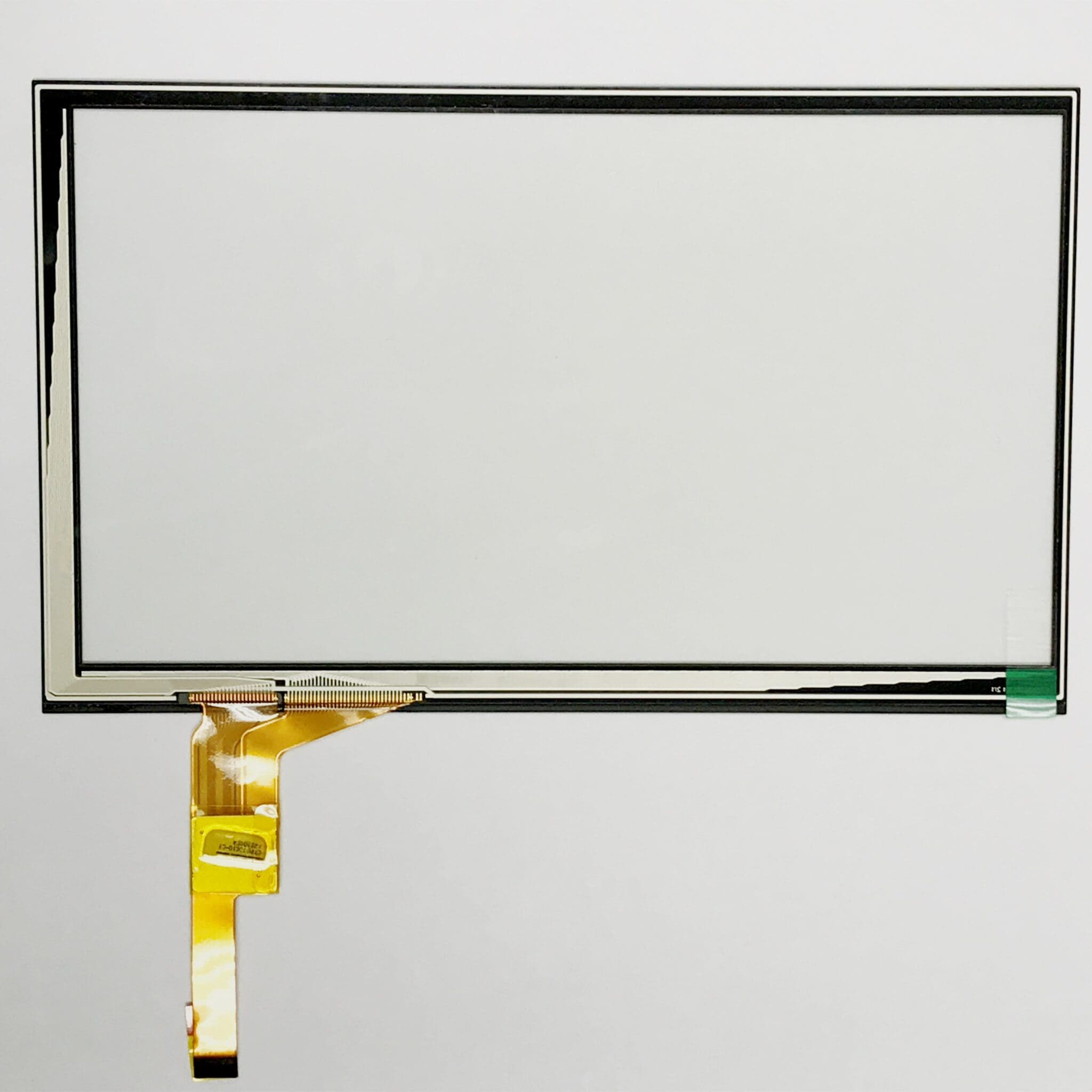

A 7.0″ Capacitive Touch Panel for 7.0” TFT.

The highest quality product at the lowest price. Ships from the USA.
  • 7.0″ Capacitive Touch Panel for TFT
  • Glass (Lens) + Glass (Sensor)
  • 5 Point Touch
  • 800 x 480 Resolution
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -20°C to 80°C
  • ROHS Compliant

Download Product References Below
Product Datasheet: CTP070
Model / Series Name CTP070
Diagonal Dimension (inch) 7.0
Dots WxH 800 x 480
Cover Lens Size WxHxT (mm) 164.9 x 100.0 x 1.1
Sensor Size WxHxT (mm) 164.4 x 98.0 x 0.55
IC ATMXT540E
Interface Type I2C
Power Voltage 3.3V
Operating Temp -20°C to 70°C
Storage Temp -20°C to 80°C
Structure Glass (Lens) + Glass (Sensor)

These are just few of our famous Touch Panels; we still have a lot of Touch Panel products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Additional information

Weight 0.16 lbs
Dimensions 163 × 159 × 2 mm
Diagonal Size (Inch)

7.0

resolution

800×480

Touch Panel

Capacitive Touch Panel
