3.12'' OLED, 256x64, Monochrome, Parallel/SPI Interface
HomeOLED Display 3.12” OLED, 256×64, Monochrome, Parallel/SPI Interface
Previous product
2.23'' OLED, 128x32, Monochrome, Parallel/SPI/I2C Interface $16.47
Back to products
Next product
AMC0802BR-B-B6WTDW-SPI (8x2 Character LCD Module - SPI Interface)
AMC0802BR-B-B6WTDW-SPI (8x2 Character LCD Module - SPI Interface) $6.56

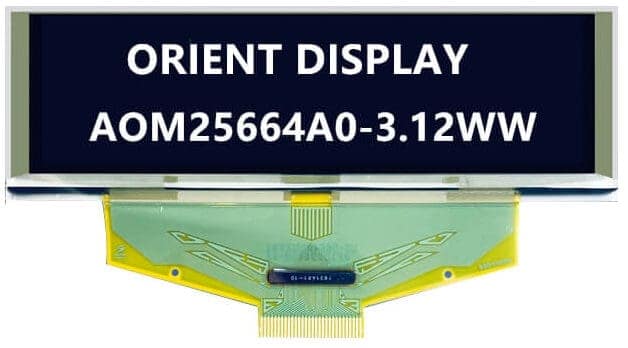

3.12” OLED, 256×64, Monochrome, Parallel/SPI Interface

$30.28CONTACT FOR VOLUME PRICING

197 in stock

  • Model / Series Name: AOM25664A0-3.12WW
  • Diagonal Dimension (Inches): 3.12
  • Dots WxH: 256 x 64
  • Module Size WxHxD max (mm): 88.00 x 47.80 x 2.00

Pricing table

QuantityUnit Price
50-$27.44

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: AOM25664A0-3.12WW Categories: OLED Display, OLED Display Panels
Share
Facebook Email linkedin

Description

A simple 3.12″ Passive Matrix OLED, Monochrome with White display color / All viewing direction / with 256 x 64 dots.

3.12′ Inch OLED display, Monochrome, Parallel/SPI Interface

The highest quality product 3.12 Inch OLED Display at the lowest price. Ships from the USA.
  • 3.12″ OLED, 256 x 64
  • All Viewing Direction
  • Operating Temp: -40°C to 85°C
  • Storage Temp: -40°C to 90°C
  • ROHS Compliant

Download Product References Below
Product Datasheet: AOM25664A0-3.12WW
Controller Datasheet: SSD1322
Optional Accessory: TBD

These are just few of our famous OLED displays; we still have a lot of OLED products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Model / Series Name AOM25664A0-3.12WW
Diagonal Dimension (Inches) 3.12
Dots WxH 256 x 64
Module Size WxHxD max (mm) 88.00 x 47.80 x 2.00
Display Mode OLED
IC SSD1322
Interface Type 8-bit Parallel, 3-/4-wire SPI Interface
Logic Power Supply Voltage 2.8V
Backlight /
Luminance 80 cd/m2
Touch Panel None

Additional information

Weight 0.022 lbs
Dimensions 88 × 48 × 2 mm
displaytype

OLED

backlightcolor

None

diagonal-size

3.12

resolution

256×64

touchpanel

None

viewingdirection

All
