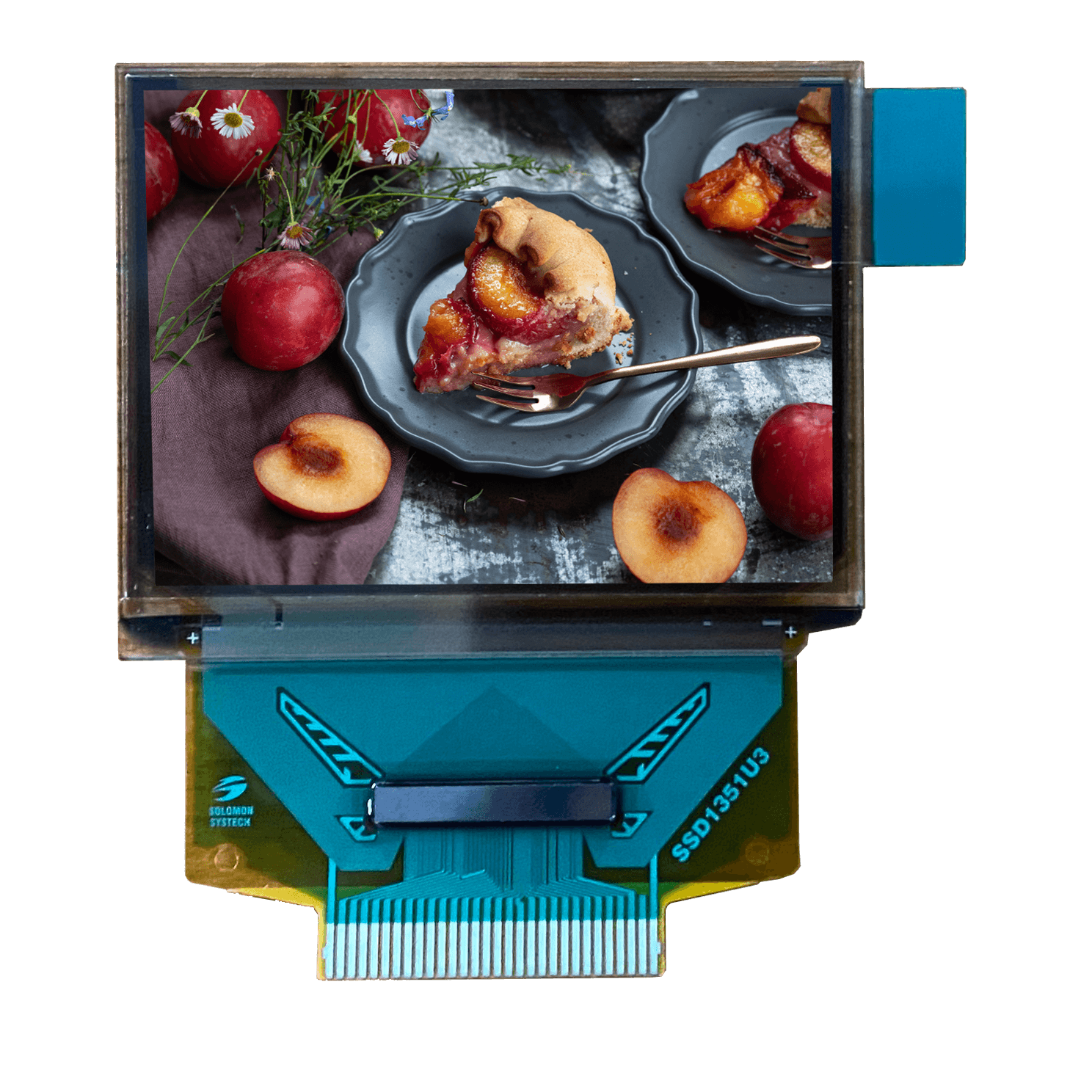

1.27” OLED, 128×96, Color, Parallel/SPI Interface
$22.85CONTACT FOR VOLUME PRICING
86 in stock
- Passive Matrix OLED
- Diagonal Dimension: 1.27 Inch
- Resolution: 128 x 96 pixels
- Interface: Parallel, 3-/4-wire SPI Interface
- Luminance: 100 cd/m2
- Viewing Direction: All
- Touch Panel: None
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $21.84 |
| 50- | $20.83 |
Contact us for larger volume orders and any other enquiries.
Description
A simple 1.27″ Passive Matrix OLED, Color / All viewing direction / with 128 x 96 dots.
27 OLED Display with SPI Interface – details
The highest quality product at the lowest price. Ships from the USA.
- 1.27″ OLED, 128 x 96
- All Viewing Direction
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AOC12896A0-1.27W
Controller Datasheet: SSD1351
Optional Accessory: TBD
| Model / Series Name | AOC12896A0-1.27W |
| Diagonal Dimension (Inches) | 1.27 |
| Dots WxH | 128 x 96 |
| Module Size WxHxD max (mm) | 33.70 × 26.90 × 1.60 |
| Display Mode | OLED |
| IC | SSD1351 |
| Interface Type | Parallel, 3-/4-wire SPI Interface |
| Logic Power Supply Voltage | 2.5V |
| Backlight | / |
| Luminance | 100 cd/m2 |
| Touch Panel | None |
These are just a few of our famous OLED modules; we still have a lot of OLED products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
