1.69” OLED, 160×128, Color, Parallel/SPI/RGB Interface
$26.76CONTACT FOR VOLUME PRICING
45 in stock
- Passive Matrix OLED
- Diagonal Dimension: 1.69 Inch
- Resolution: 160 x 128 pixels
- Interface: 8-/9-bit Parallel, 4-wire SPI, 6-bit RGB Interface
- Luminance: 100 cd/m2
- Viewing Direction: All
- Touch Panel: None
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $25.49 |
| 50- | $24.22 |
Contact us for larger volume orders and any other enquiries.
Description
A simple 1.69″ Passive Matrix OLED, Color / All viewing direction / with 160 x 128 dots.
The highest quality product at the lowest price. Ships from the USA.
- 1.69″ OLED, 160 x 128
- All Viewing Direction
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AOC160128B0-1.69W
Controller Datasheet: SSD1333
Optional Accessory: TBD
| Model / Series Name | AOC160128B0-1.69W |
| Diagonal Dimension (Inches) | 1.69 |
| Dots WxH | 160 x 128 |
| Module Size WxHxD max (mm) | 39.90 x 48.50 x 1.60 |
| Display Mode | OLED |
| IC | SSD1333 |
| Interface Type | 8-/9-bit Parallel, 4-wire SPI, 6-bit RGB Interface |
| Logic Power Supply Voltage | 4V |
| Backlight | / |
| Luminance | 100 cd/m2 |
| Touch Panel | None |
These are just few of our famous OLED modules; we still have a lot of OLED products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
Reviews (0)
Shipping & Delivery
Related products
1.50” OLED, 128×128, Color, Parallel/SPI Interface
- Passive Matrix OLED
- Diagonal Dimension: 1.50 Inch
- Resolution: 128 x 128 pixels
- Interface: Parallel, 3-/4-wire SPI Interface
- Luminance: 90 cd/m2
- Viewing Direction: All
- Touch Panel: None

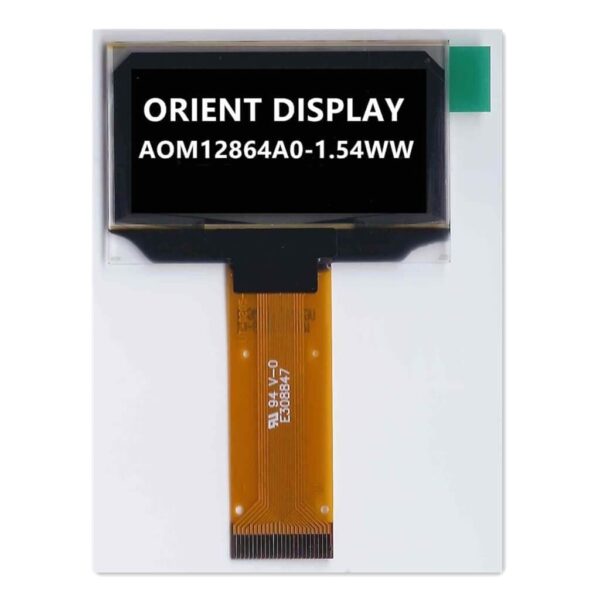

1.54” Arduino OLED Displays, 128 x 64, Monochrome White, 4-Wire SPI Interface
