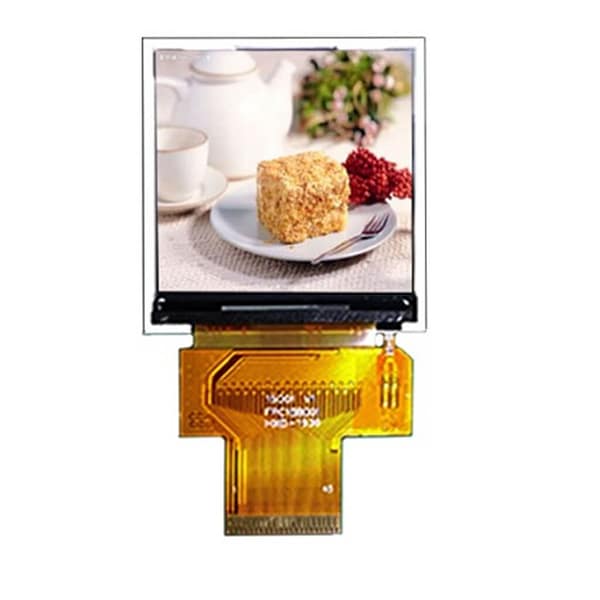

1.5" IPS display, 240x240, 255 Nits, MCU/SPI Interface $8.80

Back to products

Next product

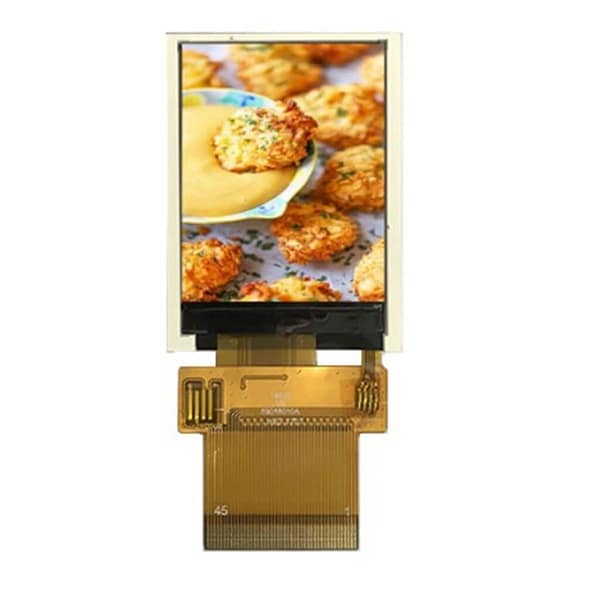

1.77" IPS display, 240x320, 400 Nits, MCU/SPI/RGB Interface $11.78

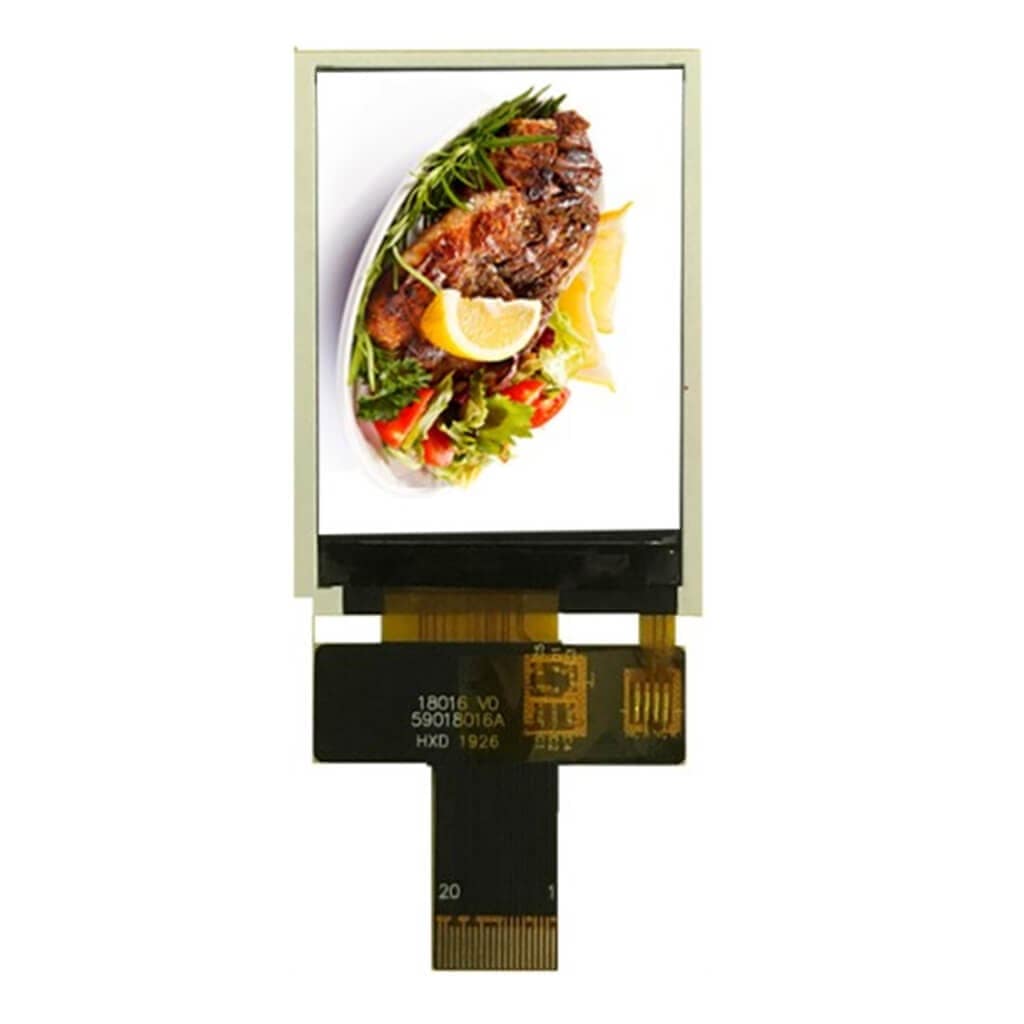

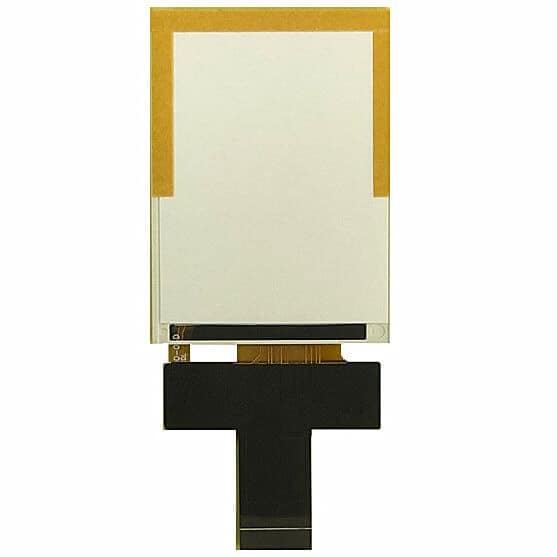

1.77″ IPS display, 240×320, 500 Nits, MIPI Interface

104 in stock

Medium Brightness / IPS
Diagonal Dimension: 1.77 Inch
Resolution: 240 x 320 pixels
Interface: MIPI
Luminance: 500 cd/m²
Viewing Direction: ALL
Touch Panel: None

SKU: AFR240320A0-1.77INTM-I Categories: MIPI interface IPS TFT Panels, Color TFT, Special Size TFT Panels

Description

A simple 1.77″ Normal Brightness / IPS Module, Transmissive / All Viewing Direction / Normal Black with 240 x 320 dots.

1.77″ IPS display, 240×320, 500 Nits, MIPI Interface

The highest quality product at the lowest price. Ships from the USA.

1.77″ IPS, 240 x 320
Normal Brightness / IPS
Transmissive / Normal Black
ALL Viewing Direction
Operating Temp: -20°C to 70°C
Storage Temp: -30°C to 80°C
ROHS Compliant

Download Product References Below

Product Datasheet: AFR240320A0-1.77INTM-I

Controller Datasheet: JD9852

Optional Accessory: TBD

Model / Series Name	AFR240320A0-1.77INTM-I
Diagonal Dimension (Inches)	1.77
Dots WxH	240 x 320
Module Size WxHxD max (mm)	34.70 x 46.7 x 2.50
Display Mode	IPS / Normal black / Transmissive
IC	JD9852
Interface Type	MIPI Interface
Logic Power Supply Voltage	3.3
Backlight	3 LED, WHITE, If=20mA
Luminance	500 cd/m²
Touch Panel	None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

Additional information

Weight	0.0130 lbs
Dimensions	34 × 76 × 2 mm
backlightcolor	White
diagonal-size	1.77
displaytype	TFT – IPS
polarizertype	Transmissive
resolution	240×320
touchpanel	None
viewingdirection	All
interface	MIPI
