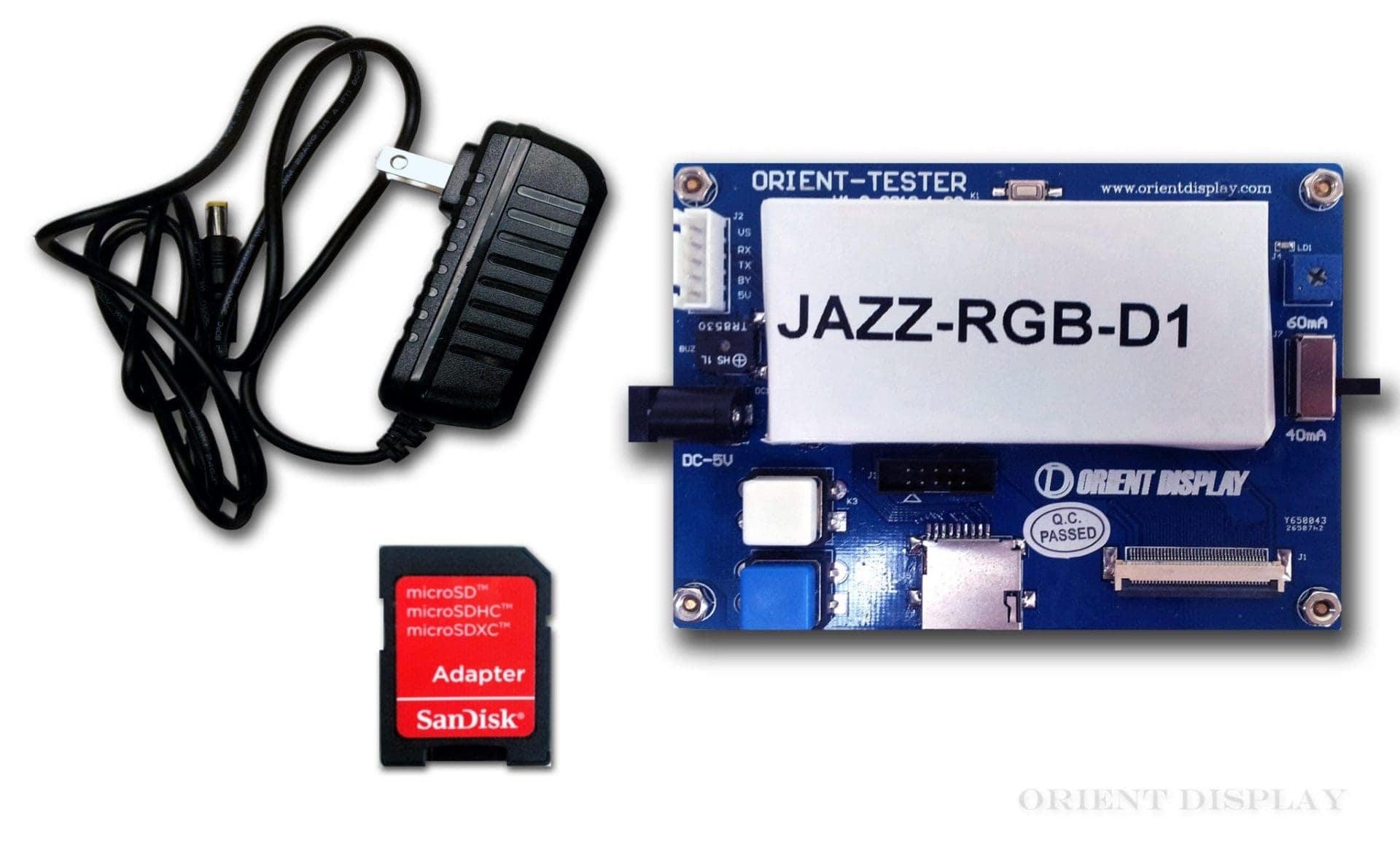

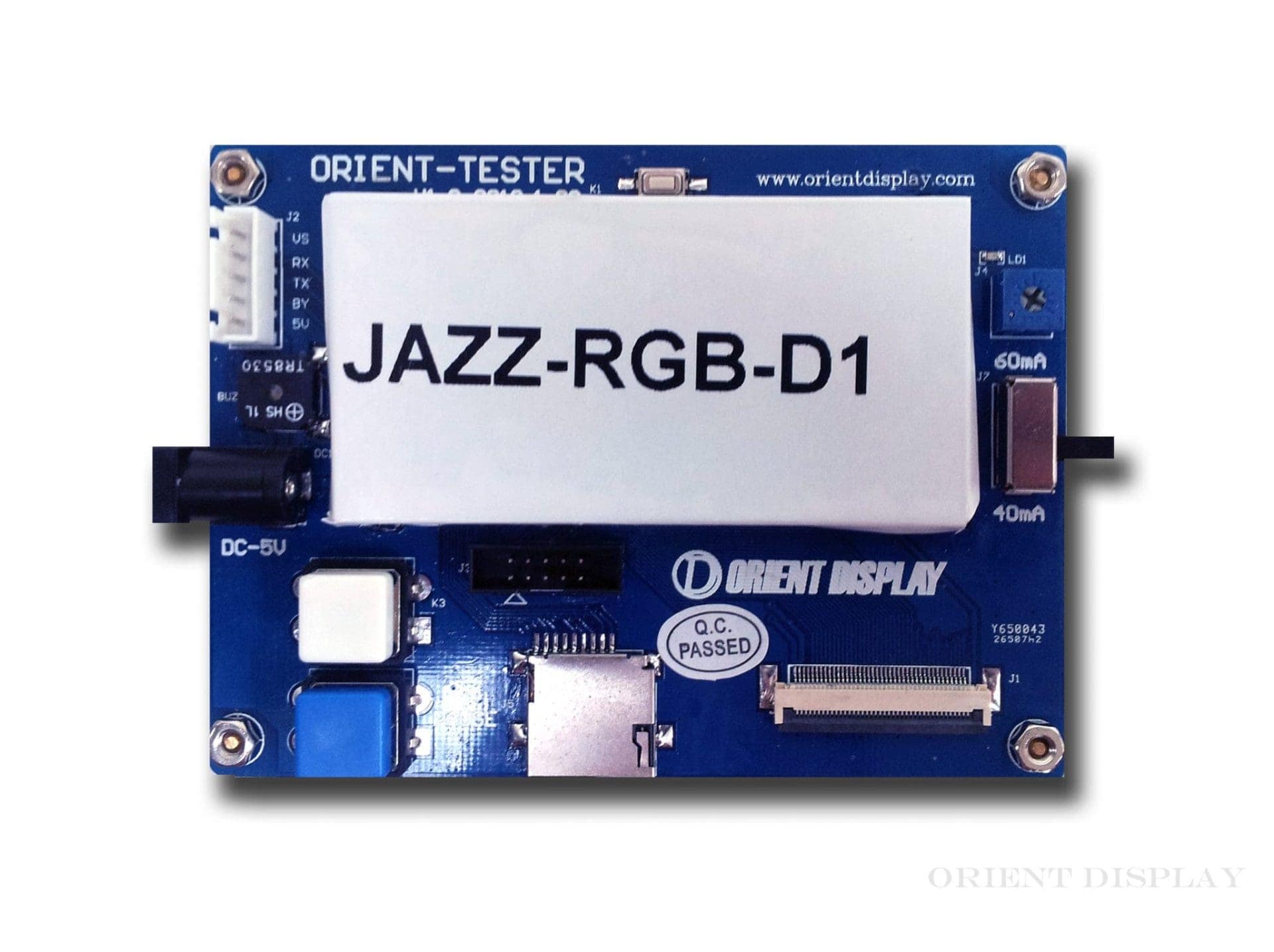

JAZZ-RGB-D1 (Demo Board for 3.5″, 4.3″, 5.0″, and 7.0″ TFTs)

47 in stock

EVALUATION & DEVELOPMENT BOARD
Exlusively made for our standard 3.5″, 4.3″, 5.0″ and 7.0″ TFTs
AC110V-240V or USB Input, DC 5V/1A Output

SKU: JAZZ-RGB-D1 Category: Demo Board & Display Accessories

Description

The JAZZ-RGB-D1 is the newly developed EVALUATION & DEVELOPMENT BOARD for our standard TN mode 3.5″, 4.3″, 5.0″ and 7.0″ TFTs.

This JAZZ-RGB-D1 evaluation / tester kit has the following features:

Exclusively made for our standard 3.5″, 4.3″, 5.0″ and 7.0″ TFTs
- - AFY320240A0-3.5N6NTN (3.5″ TFT)
  - AFY320240A0-3.5N6NTN-R (3.5″ TFT Med Bright with Resistive Touch Panel)
  - AFY320240B0-3.5N12NTM (3.5″ TFT)
  - AFY320240B0-3.5N12NTM-R (3.5″ TFT Med Bright with Resistive Touch Panel)
  - AFY480272A0-4.3N6NTM (4.3″ TFT)
  - AFY480272A0-4.3N6NTN-R (4.3″ TFT with Resistive Touch Panel)
  - AFY480272B0-4.3N12NTM (4.3″ TFT)
  - AFY480272B0-4.3N12NTM-R (4.3″ TFT Med Bright with Resistive Touch Panel)
  - AFY800480A0-5.0N6NTN-R (5.0″ TFT with Resistive Touch Panel)
  - AFY800480B1-5.0N12NTM (5.0″ TFT)
  - AFY800480B0-5.0N12NTM-R (5.0″ TFT with Resistive Touch Panel)
  - AFY800480A0-7.0N6NTM (7.0″ TFT)
  - AFY800480B0-7.0N12NTM (7.0″ TFT)
  - AFY800480B1-7.0N12NTM-R (7.0″ TFT Med Bright with Resistive Touch Panel)

Click here to download the JAZZ-RGB-D1 Operations Manual

Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.

Please send your inquiries to info@orientdisplay.com

Additional information

Weight	2.61 lbs
Dimensions	75 × 105 × 15 mm
displaytype	Demo Board
