JAZZ-CPU-D1 (Demo Board for 2.4" and 2.8" TFTs)
JAZZ-CPU-D1 (Demo Board for 2.4" and 2.8" TFTs)
JAZZ-CPU-D1 (Demo Board for 2.4" and 2.8" TFTs)
HomeDemo Board & Display Accessories JAZZ-CPU-D1 (Demo Board for 2.4″ and 2.8″ TFTs)
Previous product
JAZZ-BE-W (WHITE LED Backlight for JAZZ B Graphic LCD)
JAZZ-BE-W (WHITE LED Backlight for JAZZ B Graphic LCD) $2.08
Back to products
Next product
OD-103R (1 Digit LCD Glass Panel)
OD-103R (1 Digit LCD Glass Panel) $6.00

JAZZ-CPU-D1 (Demo Board for 2.4″ and 2.8″ TFTs)

$50.00CONTACT FOR VOLUME PRICING

10 in stock

  • EVALUATION & DEVELOPMENT BOARD
  • Exlusively made for our standard 2.4″ and 2.8″ TFTs
  • AC110V-240V or USB Input, DC 5V/1A Output
Compare
Add to wishlist
SKU: JAZZ-CPU-D1 Category: Demo Board & Display Accessories
Share
Facebook Email linkedin

Description

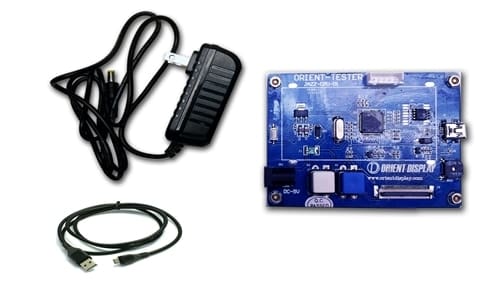

The JAZZ-CPU-D1 is the newly developed EVALUATION & DEVELOPMENT BOARD for our standard TN mode 2.4″ and 2.8″ TFTs.

Demo Board for 2.4″ and 2.8″ TFTs JAZZ-CPU-D1

This JAZZ-CPU-D1 evaluation / tester kit has the following features:

  • Exclusively made for our standard 2.4″ and 2.8″ TFTs
      • AFY240320A0-2.4N6NTN (2.4″ A0 Series TFT)
      • AFY240320A0-2.4N6NTN-R (2.4″ A0 Series TFT with Resistive Touch Panel)
      • AFY240320A0-2.8N6NTM (2.8″ A0 Series TFT Med Bright)
      • AFY240320B0-2.4N6NTM (2.4″ B0 Series TFT Med Bright)
      • AFY240320B0-2.4N6NTM-R (2.4″ B0 Series TFT with Resistive Touch Panel)
      • AFY240320B0-2.8N6NTM (2.8″ B0 Series TFT Med Bright)
      • AFY240320B0-2.8N6NTM-R (2.8″ B0 Series TFT with Resistive Touch Panel)
  • It uses AC110V-240V Input and DC 5V/1A Output
  • It can be powered via a USB Port.
  • User Friendly
  • It is capable of loading photos with 240×320 Resolution.
  • Click here to download the JAZZ-CPU-D1 Operations Manual

Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.

Please send your inquiries to info@orientdisplay.com

Additional information

Weight 2.61 lbs
Dimensions 65 × 92 × 15 mm
displaytype

Demo Board
