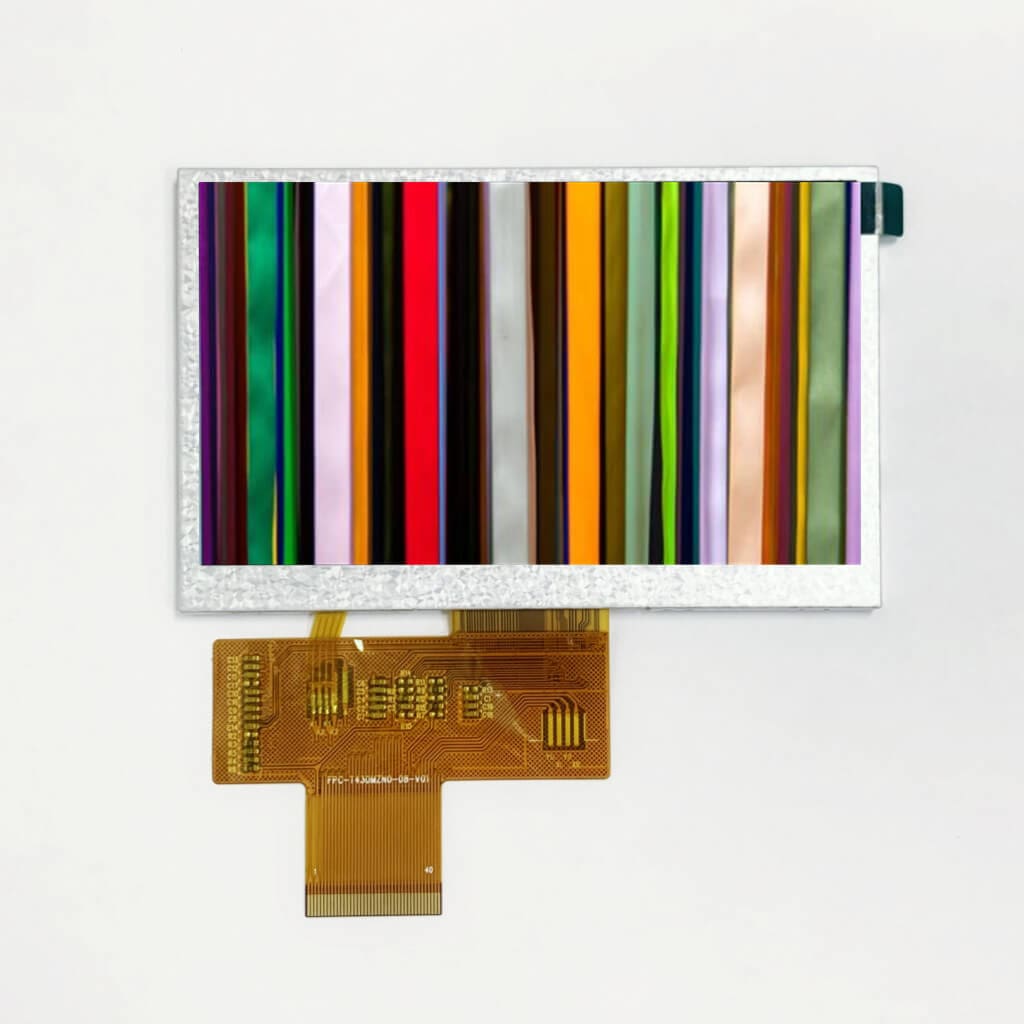

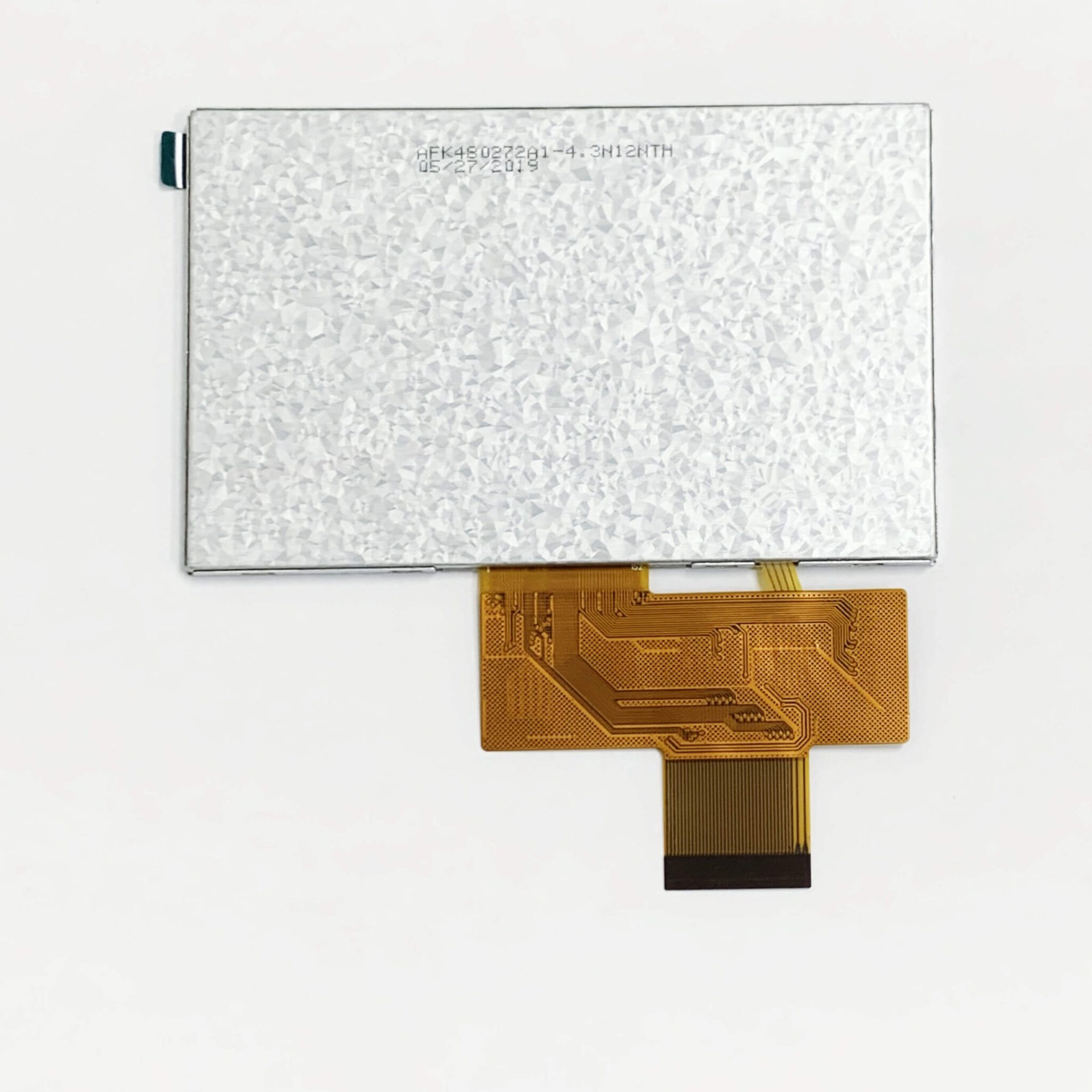

4.3″ TFT, 480×272, High Brightness 1000 Nits, RGB Interface
$25.00CONTACT FOR VOLUME PRICING
37 in stock
- Diagonal Dimension: 4.3 Inch
- Resolution: 480 x 272 pixels
- Interface: 24BIT RGB
- Luminance: 1000 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Description
A simple 4.3″ Full Color / High Brightness TFT Module, Transmissive/ Normal White with 480 x (RGB) x 272 dots.
The highest quality product at the lowest price. Ships from the USA.
- 4.3″ TFT, 480 x (RGB) x 272
- Full Color / High Brightness TFT Module
- Transmissive / Normal White
- 12 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFK480272A1-4.3N12NTH
Controller Datasheet: OTA5180A
Optional Accessory: TBA
| Model / Series Name | AFK480272A1-4.3N12NTH |
| Diagonal Dimension (inch) | 4.3 |
| Dots WxH | 480 x 272 |
| Module Size WxHxD max (mm) | 105.5*67.2*2.92 |
| Display Mode | TN TFT / Transmissive / Normal White |
| IC | OTA5180A |
| Interface Type | 24BIT RGB |
| Logic Power Supply Voltage | 3.3V |
| Backlight | 10 Chip White LED |
| Luminance | 1000 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.63 lbs |
|---|---|
| Dimensions | 67.20 × 105.50 × 4.12 mm |
| backlightcolor | |
| diagonal-size | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection |
