HomeTFT DisplaysColor TFT 2.4” TN TFT, 240×320, MCU Parallel Interface, 900nits
Previous product
2.4” IPS TFT, 240x320, MCU Interface, 300nits $16.23
Back to products
Next product
3.5” IPS TFT, 320x480, SPI+18BIT RGB Interface, 350nits $16.84

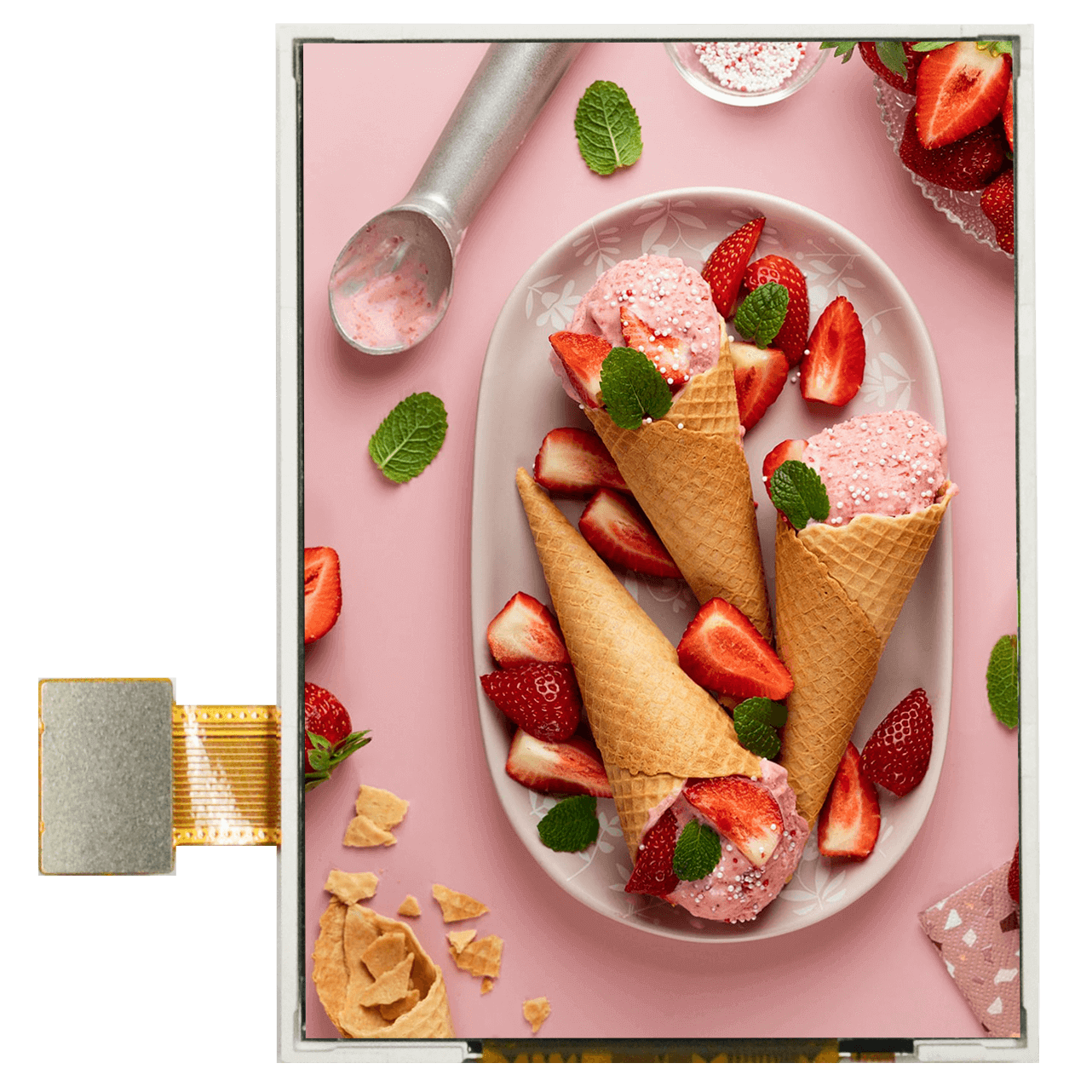

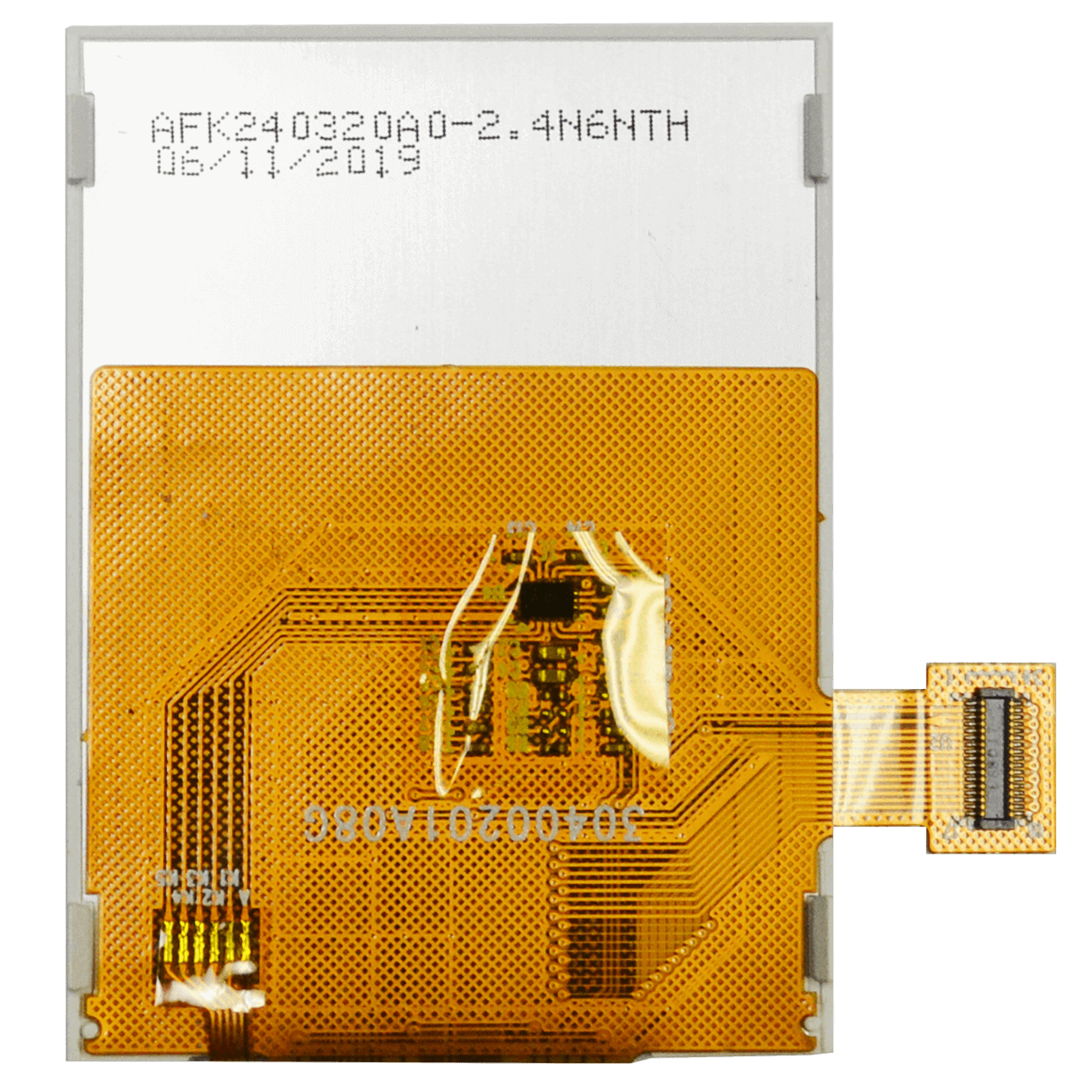

2.4” TN TFT, 240×320, MCU Parallel Interface, 900nits

$13.85CONTACT FOR VOLUME PRICING

34 in stock

  • High Brightness / TN
  • Diagonal Dimension: 2.4 Inch
  • Resolution: 240 x 320 pixels
  • Interface: 18 BITS MCU Parallel
  • Luminance: 900 cd/m2
  • Viewing Direction: 6 o’clock
  • Touch Panel: None
Compare
Add to wishlist
SKU: AFK240320A0-2.4N6NTH Categories: Color TFT, High Brightness TFT Panels, TFT Display Panels
Share
Facebook Email linkedin

Description

A simple 2.4″ High Brightness TN Module, Transmissive / 6 o’clock Viewing Direction with 240 x (RGB) x 320 dots.

The highest quality product at the lowest price. Ships from the USA.

2.4” TN TFT, 240×320, MCU Parallel Interface, 900nits

  • 2.4″ TN, 240 x (RGB) x 320
  • High Brightness / TN
  • Transmissive
  • 6 o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant

Download Product References Below
Product Datasheet: AFK240320A0-2.4N6NTH
Controller Datasheet: ILI9341V
Optional Accessory: TBD
Model / Series Name AFK240320A0-2.4N6NTH
Diagonal Dimension (inch) 2.4
Dots WxH 240 x 320
Module Size WxHxT max (mm) 42.78×59.16×2.45
Display Mode TN / Transmissive / Anti-glare
IC ILI9341V
Interface Type 18 BITS MCU Parallel Interface
Logic Power Supply Voltage 2.8V
Backlight White
Luminance 900 cd/m2
Touch Panel None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Additional information

Weight 0.02 lbs
Dimensions 60 × 57 × 2 mm
backlightcolor

White

diagonal-size

2.4

displaytype

TFT – TN

polarizertype

Transmissive

resolution

240×320

touchpanel

None

viewingdirection

6 o'clock
