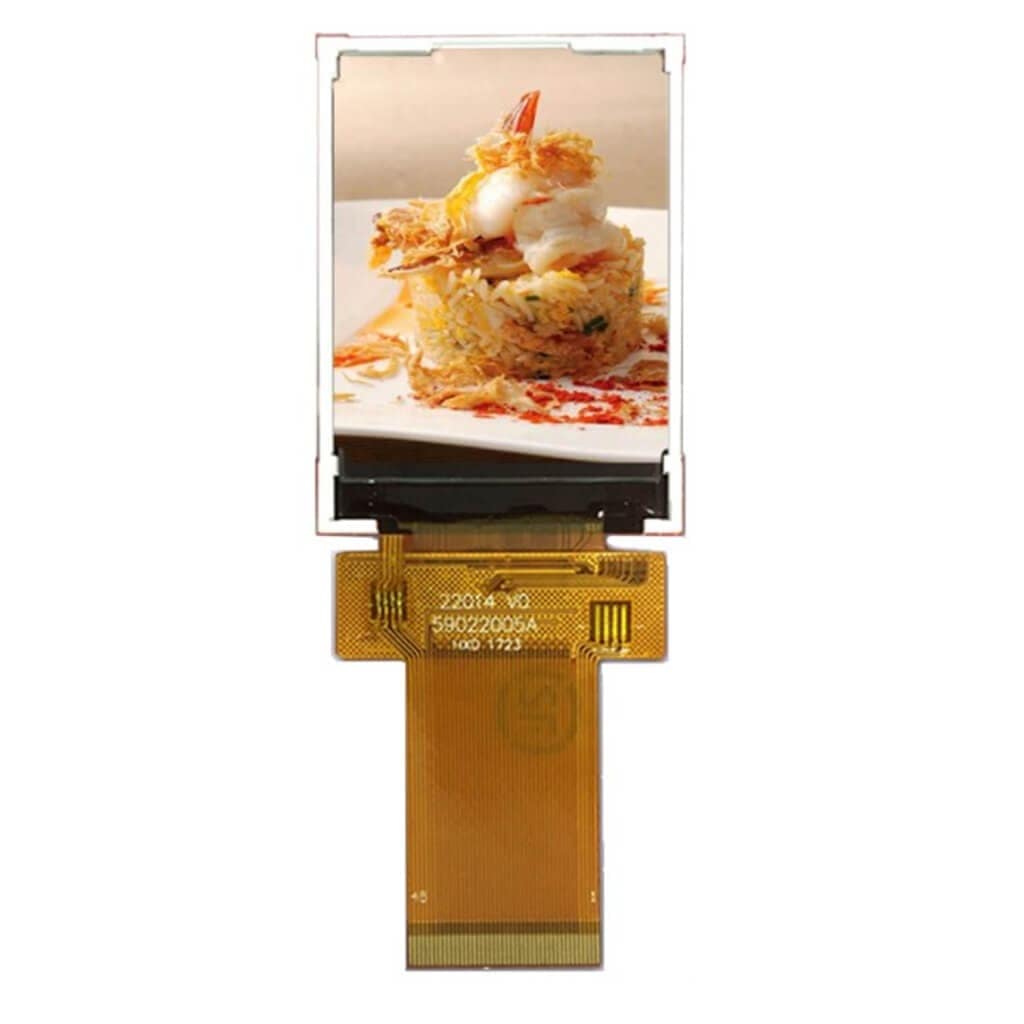

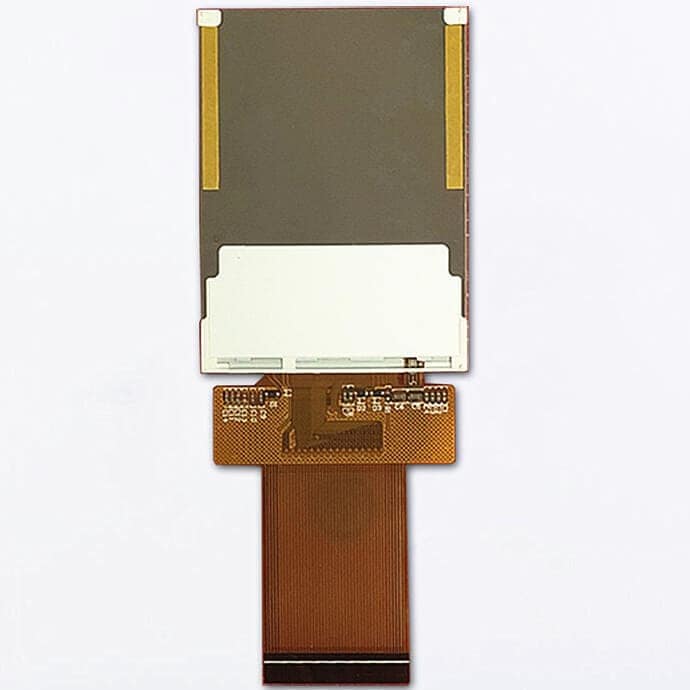

2.2″ IPS display, 240×320, 450 Nits, MCU Interface

15 in stock

Medium Brightness / IPS
Diagonal Dimension: 2.2 Inch
Resolution: 240 x 320 pixels
Interface: MCU
Luminance: 450 cd/m²
Viewing Direction: ALL
Touch Panel: None

SKU: AFR240320A0-2.2INTM Categories: Color TFT, Special Size TFT Panels

Description

A simple 2.2″ Normal Brightness / IPS Module, Transmissive / All Viewing Direction / Normal Black with 240 x 320 dots.

The highest quality product at the lowest price. Ships from the USA.

2.2″ IPS, 240 x 320
Normal Brightness / IPS
Transmissive / Normal Black
ALL Viewing Direction
Operating Temp: -20°C to 70°C
Storage Temp: -30°C to 80°C
ROHS Compliant

Download Product References Below

Product Datasheet: AFR240320A0-2.2INTM

Controller Datasheet: ER61516

Optional Accessory: TBD

Model / Series Name	AFR240320A0-2.2INTM
Diagonal Dimension (Inches)	2.2
Dots WxH	240 x 320
Module Size WxHxD max (mm)	41.70 x 56.16 x 2.60
Display Mode	IPS / Normal black / Transmissive
IC	ER61516
Interface Type	MCU Interface
Logic Power Supply Voltage	3.3
Backlight	3 LED, 60mA
Luminance	450 cd/m²
Touch Panel	None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Additional information

Weight	0.0165 lbs
Dimensions	41 × 105 × 3 mm
backlightcolor	White
diagonal-size	2.2
displaytype	TFT – IPS
polarizertype	Transmissive
resolution	240×320
touchpanel	None
viewingdirection	All
