$58.64CONTACT FOR VOLUME PRICING
147 in stock
| Quantity | Unit Price |
|---|---|
| 25-49 | $56.13 |
| 50- | $53.61 |
Contact us for larger volume orders and any other enquiries.

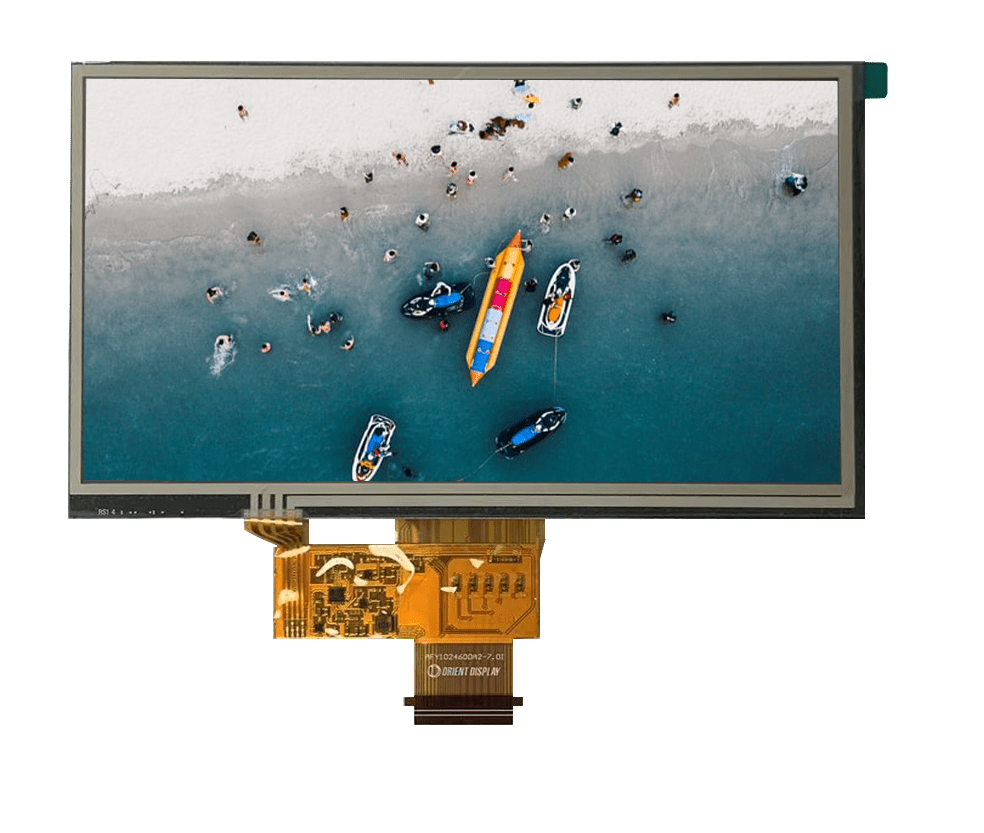

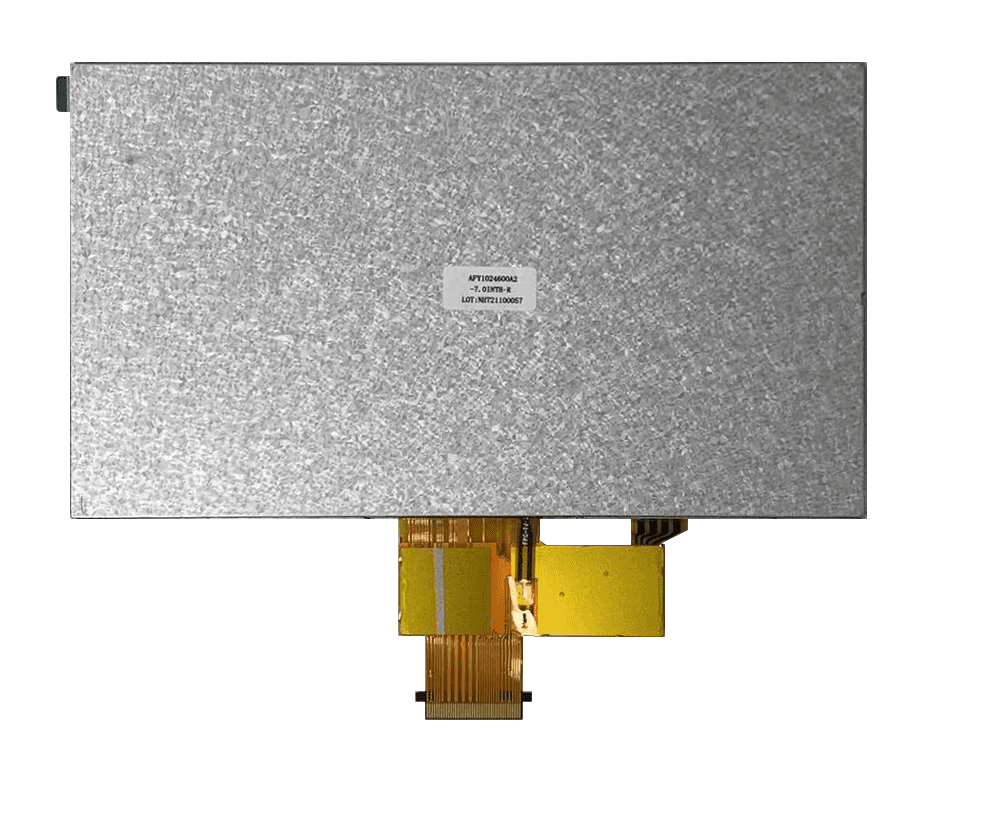

A simple 7.0″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 1024 x (RGB) x 600 dots.
| Model / Series Name | AFY1024600A2-7.0INTH-R |
| Diagonal Dimension (Inches) | 7.0 |
| Dots WxH | 1024 x 600 |
| Module Size WxHxD max (mm) | 164.80 x 99.80 x 6.8 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | EK79001 EK73215BCGA |
| Interface Type | LVDS |
| Logic Power Supply Voltage | 3.3 |
| Backlight | 30 Chip White LED, lf = 150mA |
| Luminance | 800 cd/m2 |
| Touch Panel | Resistive |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 99.8 × 164.80 × 7.10 mm |
| backlightcolor | |
| diagonal-size | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection | |
| interface | LVDS |
