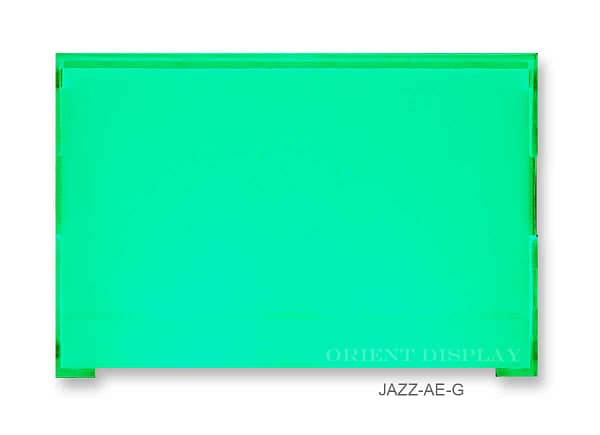

JAZZ A-W6WFDG is a combination of JAZZ-AC-W (LCD in FSTN positive mode) and JAZZ-AE-G (Green LED backlight). This JAZZ product is a 2.7″ monochrome 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Green LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7567 or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.
The highest quality product at the lowest price.
- LCD in FSTN Positive Mode with Green LED Backlight
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Green LED Backlight
- COG Type (Chip on Glass)
- ROHS Compliant
Download Product References Below
Product Datasheet: JAZZ-AC-W JAZZ-AE-G
Downloadable Example Codes for JAZZ-A Modules
JAZZ-AC-W Software Code (Controller ST7567 MCU NXP1766)
JAZZ-AC-W Display Code
Product Demo (Video): JAZZ-AC-W with White LED backlight
Optional Accessories
JAZZ-A Evaluation Board: JAZZ-AB

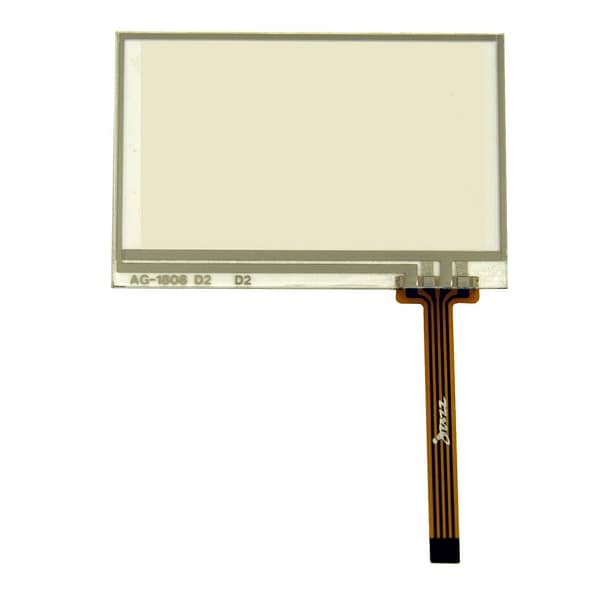

JAZZ-A Standard Resistive Touch Panel: JAZZ-AT
