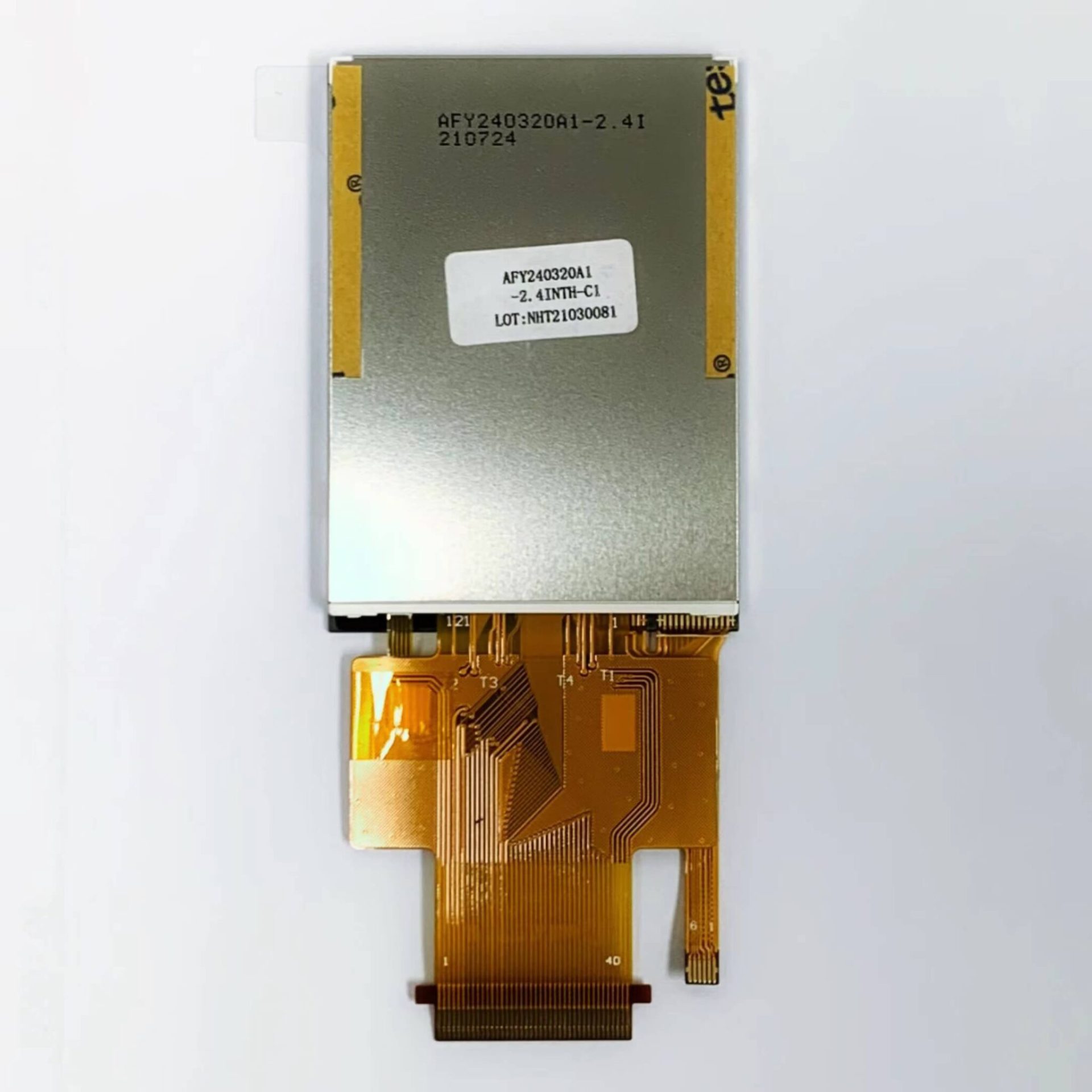

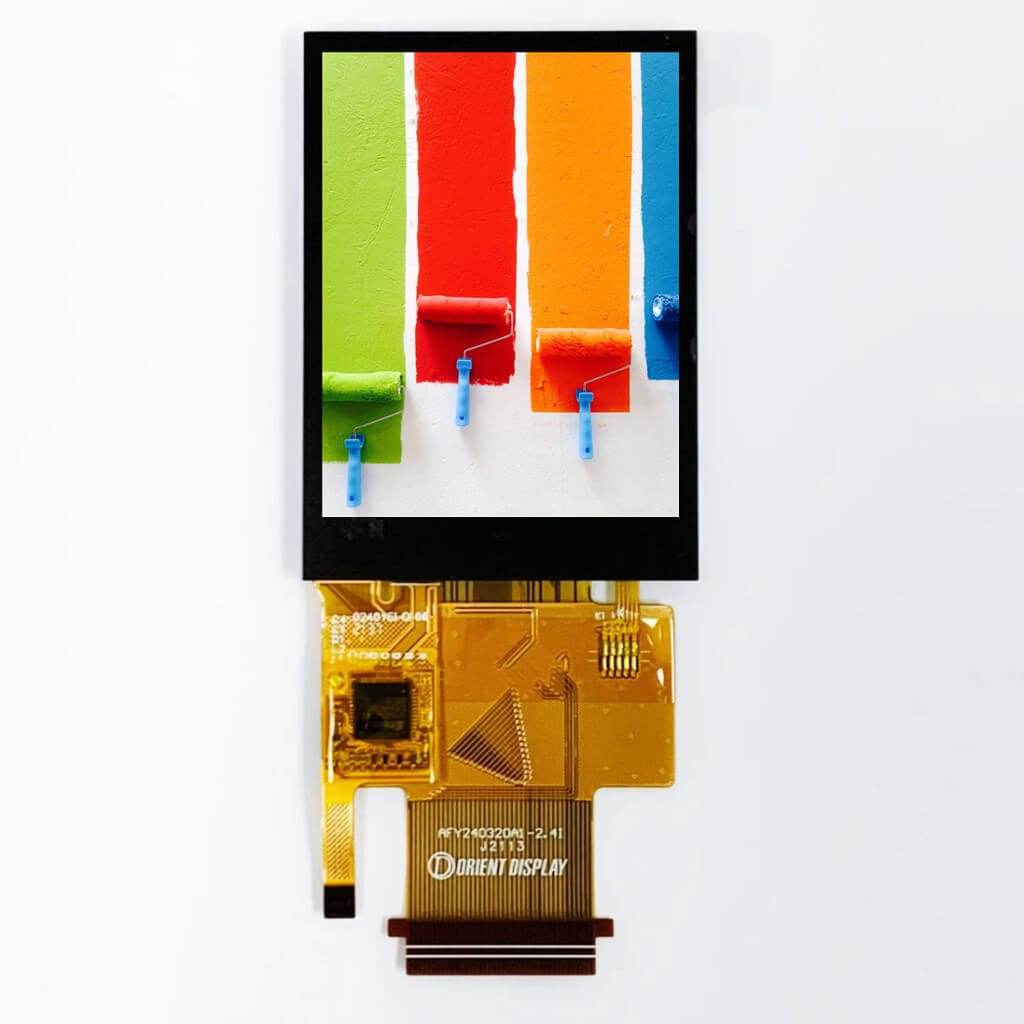

2.4″ Sunlight Readable IPS, 240×320, 900 Nits with Capacitive Touch Panel (new IC), RGB/MCU/SPI Interface
$29.41CONTACT FOR VOLUME PRICING
692 in stock
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: RGB/MCU/SPI
- Luminance: 900 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
Pricing table
Quantity | Unit Price |
---|---|
25-49 | $26.19 |
50- | $22.97 |
Contact us for larger volume orders and any other enquiries.
SKU: AFY240320A1-2.4INTH-C1
Categories: Sunlight Readable IPS TFT Panels, TFT with Touch Panels, Color TFT, High Brightness TFT Panels
Description
A simple 2.4″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 240 x (RGB) x 320 dots.
The highest quality product at the lowest price. Ships from the USA.
2.4 IPS display 900 nits with Capacitive Touch Panel – details
- 2.4″ IPS, 240 x (RGB) x 320
- High Brightness / Sunlight Readable IPS
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFY240320A1-2.4INTH-C1
Controller Datasheet: ST7789VI
Optional Accessory: TBD
Model / Series Name | AFY240320A1-2.4INTH-C1 |
Diagonal Dimension (inch) | 2.4 |
Dots WxH | 240 x 320 |
Module Size WxHxT max (mm) | 43.22 x 60.31 x 3.93 |
Display Mode | IPS / Normal black / Transmissive / Anti-glare |
IC | ST7789VI (ST1633i for CTP) |
Interface Type | RGB/MCU/SPI |
Logic Power Supply Voltage | 2.8V |
Backlight | 4 Chip White LED, lf = 80 mA |
Luminance | 900 cd/m2 |
Touch Panel | Capacitive |
These are just few of our famous TFT modules; we still have a lot of TFT displays to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
Weight | 0.12 lbs |
---|---|
Dimensions | 58.5 × 42.72 × 2.15 mm |
backlightcolor | |
diagonal-size | |
displaytype | |
polarizertype | |
resolution | |
touchpanel | |
viewingdirection |
