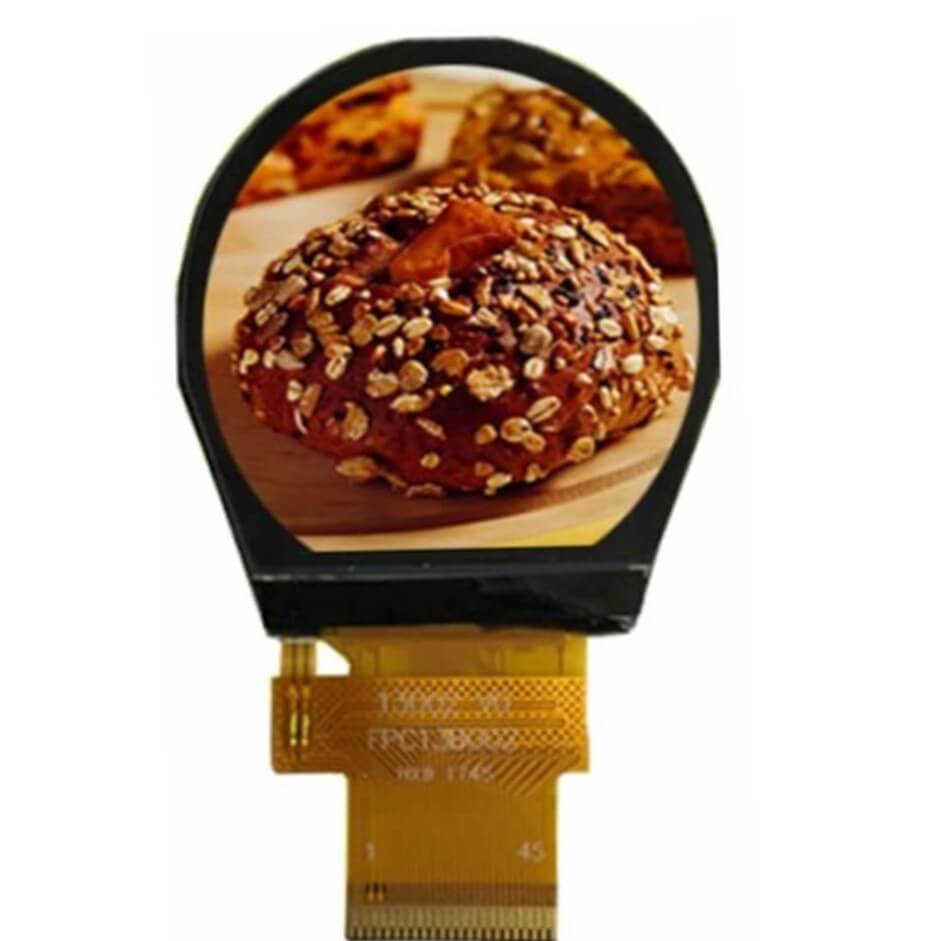

1.3″ Round IPS display, 240×240, 450 Nits, MCU/SPI/RGB Interface
$15.31CONTACT FOR VOLUME PRICING
29 in stock
- Medium Brightness / IPS
- Diagonal Dimension: 1.3 Inch Round
- Resolution: 240 x 240 pixels
- Interface: MCU/SPI/RGB
- Luminance: 450 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Description
A simple round 1.3″ Medium Brightness / IPS Module, Transmissive / All Viewing Direction / Normal Black with 240 x 240 dots.
Round IPS Display 1. 3 Inch 240×240
The highest quality product at the lowest price. Ships from the USA.
- 1.3″ Round IPS, 240 x 240
- Medium Brightness / IPS
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFR240240A0R-1.3INTM
Controller Datasheet: ST7789V
Optional Accessory: TBD
| Model / Series Name | AFR240240A0R-1.3INTM |
| Diagonal Dimension (Inches) | 1.3 Round |
| Dots WxH | 240 x 240 |
| Module Size WxHxD max (mm) | 35.90 x 39.70 x 1.29 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | ST7789V |
| Interface Type | MCU/SPI/RGB Interface |
| Logic Power Supply Voltage | 3.3 |
| Backlight | 2 LED, WHITE, If=20mA |
| Luminance | 450 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
