Graphic LCD

Home » Products » Graphic LCD

Graphic LCD Modules



Orient Display: COB/Chip on Board Graphic LCD Display, multiple resolution choices, STN Positive, Yellow Green LED Backlight

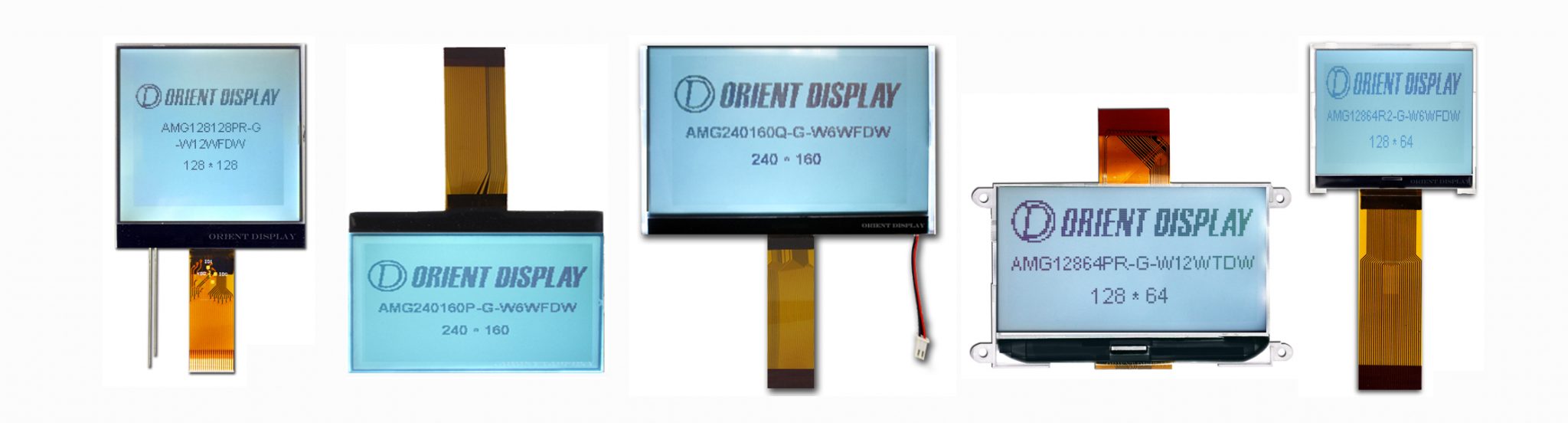

Orient Display: COG/Chip on Glass Graphic LCD Display, multiple resolution choices, FSTN Positive, White LED Backlight

Graphic LCD Module Features (Product is backed by Orient Display’s Lowest Price Guarantee Policy)

  • Perfect for products requiring monochrome or multi-colored graphic display solutions
  • Wide variety of applications ranging from GPS to gaming to fish finders
  • Tester board available for purchase on our online store
  • Explore Orient Display’s exclusive, graphic LCD product line: JAZZ
  • Utilizes a variety of widely used controllers such as S6B0107, S6B0108, UC1698U, ST7565R and others
  • Large variety of sizes (measured diagonally) and resolutions ranging from 100×32 to 320×240
  • Custom projects available

“Honored to have such great support from you and Orient Display.”

David Fournier, Business Dev. Manager

Small Size Graphic LCD Displays < 3 inch

Size Resolution Type Dimensions Viewing Area Dot Size Backlight Connection Model Controller Specs. Image Stock
1.0″ 128X64 COG (Chip-On-Glass) 28.5X20.0X1.7 26.5X14.0 0.16X0.16 JAZZ-B LCD Modules, Please go to this page. COG Graphic JAZZ-B LCD Modules Buy Here
1.7″ 128×64 COG (Chip-On-Glass) 45.0X40.0X7.2 37.0X28.0 0.252X0.33 None/LED FPC AMG12864R2-G ST7565R Full Specs Drawing Buy Here
1.9″ 128X64 COB (Chip-On-Board) 54.0X50.0X7.0 44.50X30.0 0.28X0.35 None/EL Pin AMG12864D S6B0107,S6B0108 Full Specs Drawing Buy Here
2.0″ 122X32 COB (Chip-On-Board) 65.4X29.1X5.7 54.8X19.1 0.36X0.41 None/LED/EL Pin AMG12232F S6B0107 Full Specs Drawing Buy Here
2.1″ 160X32 COB (Chip-On-Board) 84.0X44.0X14.0 60.5X18.5 0.30X0.35 None/LED Pin AMG16032A ST7920 Full Specs Drawing Buy Here
2.1″ 128×128 COG (Chip-On-Glass) 48.0X52.8×2.85 44.0X40.5 0.282X0.282 LED FPC AMG128128P-G UC1617 Full Specs Drawing Buy Here
2.2″ 122X32 COB (Chip-On-Board) 84.0X44.0X10.0 60.5X18.5 0.40X0.45 None/LED Pin AMG12232A SED1520 or equivalent Full Specs Drawing Buy Here
2.2″ 122X32 COB Chip-On-Board) 80.0X36.0X10.0 60.5X18.5 0.40X0.45 None/LED Pin AMG12232B SED1520 or equivalent Full Specs Drawing Buy Here
2.2″ 122X32 COB Chip-On-Board) 65.8X27.0X12.0 60.2X18.0 0.45X0.40 None/LED Pin AMG12232D SED1520 or equivalent Full Specs Drawing Buy Here
2.2″ 122X32 COB (Chip-On-Board) 80.0X36.0X8.8 60.5X18.5 0.40X0.45 None/LED Pin  AMG12232G S6B0107,S6B0108 Full Specs Drawing Buy Here
2.4″ 128X64 COB Chip-On-Board) 75.0X52.8X9.0 60.0X32.6 0.40X0.40 None/LED Pin AMG12864J S6B0107,S6B0108 Full Specs Drawing Buy Here
2.5″ 160X64 COB (Chip-On-Board) 89.0X35.6X17.0 62.4X25.6 0.34X0.34 None/LED Pin AMG16064A S6B0086 or equivalent Full Specs Drawing Buy Here
2.5″ 240×160 COG (Chip-On-Glass) 60.0X51.7X5.0 56.0X38.7 0.196X0.196 None/LED FPC AMG240160P-G  UC1698 or equivalent Full Specs Drawing Buy Here
2.5″ 282X128 COG (Chip-On-Glass) 54.0X43.0X2.9 50.0X23.0 0.153X0.153 LED FPC AM0186R-08 ST7687A Full Specs Drawing Buy Here
2.5″ 282X128 COG (Chip-On-Glass) 54.0X43.0X2.9 50.0X23.0 0.153X0.153 None/LED FPC AM0186R-11 ST7687A Full Specs Drawing Buy Here
2.7″ 128X64 COB (Chip-On-Board) 78.0X70.0X12.0 62.0X44.0 0.40X0.56 None/LED Pin (18) AMG12864B S6B0107,S6B0108 Full Specs Drawing Buy Here
2.7″ 128X64 COB (Chip-On-Board) 78.0X70.0X12.0 62.0X44.0 0.40X0.56 None/LED Pin (20) AMG12864H S6B0107,S6B0108 Full Specs Drawing Buy Here
2.7″ 128X64 COG (Chip-On-Glass) 69.10X46.40X2.9 65.50X37.2 0.45X0.49 JAZZ-A LCD Modules, Please go to this page.   COG Graphic JAZZ-A LCD Modules  Buy Here
2.9″ 128×64 COG (Chip-On-Glass) 87.6X50.4X5.9 70X37 0.495X0.495 LED FPC AMG12864P-G ST7565 or equivalent Full Specs Drawing Buy Here
2.9″ 122X32 COB (Chip-On-Board) 98.0X60.0X11.0 76.0X25.2 0.53X0.61 None/LED Pin AMG12232C SED1520 or equivalent Full Specs Drawing Buy Here
2.9″ 128×64 COB (Chip-On-Board) 93.0X70.0X10.0 72.0X40.0 0.48X0.48 None/LED Pin AMG12864A S6B0107,S6B0108 Full Specs Drawing Buy Here

Large Size Graphic LCD Displays > 3 inch

Size Resolution Type Dimensions Viewing Area Dot Size Backlight Connection Model Controller Specs. Image Stock
3.0″ 160×160 COG (Chip-On-Glass) 83.8X76.5X9.6 60.0X60.0 0.32X0.32 LED FPC AMG160160Q-G UC1698 Full Specs Drawing Buy Here
3.1″ 160×160 COG (Chip-On-Glass) 75.8X89.2X8.5 62.3X62.3 0.335X0.335 LED FPC AMG160160P1-G  UC1698 Full Specs Drawing Buy Here
3.3″ 192X64 COB (Chip-On-Board) 100.0X60.0X12.0 84.0X31.0 0.36X0.36 None/LED Pin AMG19264A S6B0107,S6B0108 Full Specs Drawing Buy Here
3.8″ 192X48 COB (Chip-On-Board) 122.4X52.7X9.0 99.0X24.0 0.44X0.41 None/LED Pin AMG19248A SBN0064G Full Specs Drawing Buy Here
3.9″ 240×160 COG (Chip-On-Glass) 105.5X67.2X4.2 99.0X57.5 0.33X0.30 LED FPC AMG240160Q-G UC1698 Full Specs Drawing Buy Here
4.0″ 192X64 COB (Chip-On-Board) 130.0X65.0X8.8 104.0X39.0 0.458X0.458 None/LED Pin AMG19264B S6B0107,S6B0108 Full Specs Drawing Buy Here
4.0″ 192X64 COB (Chip-On-Board) 120.0X62.0X8.8 104.0X39.0 0.458X0.458 None/LED Pin AMG19264C S6B0107,S6B0108 Full Specs Drawing Buy Here
4.0″ 240×128 COG (Chip-On-Glass) 101.3X76.3X4.5 92.0X60.5 0.37×0.33 LED FPC AMG240128P-G  UC1608 Full Specs Drawing Buy Here
4.1″ 240X128 COB (Chip-On-Board) 114.0X82.0X15.0 94.5X54.5 0.35X0.35 None/LED/CCFL Pin AMG240128C S6B0107,S6B0108 Full Specs Drawing Buy Here
4.3″ 240×64 COG (Chip-On-Glass) 134.6X55.1X5.8 111.0X37.0 0.41X0.47 LED FPC AMG24064P-G UC1608 Full Specs Drawing Buy Here
4.7″ 320X240 COB (Chip-On-Board) 139.0X106.1X14.5 103.0X79.0 0.30X0.30 None/LED/CCFL Pin AMG320240F S6B0107,S6B0108 Full Specs Drawing Buy Here
4.8″ 202X32 COB (Chip-On-Board) 150.0X45.8X.12.0 123.0X24.0 0.55X0.62 None/LED Pin AMG20232A T6963C Full Specs Drawing Buy Here
4.8″ 240X128 COB (Chip-On-Board) 144.0X104.0X13.0 114.0X64.0 0.40X0.40 None/LED Pin (20) AMG240128A T6963C Full Specs Drawing Buy Here
4.8″ 240X128 COB (Chip-On-Board) 144.0X104.0X13.0 114.0X64.0 0.40X0.40 None/LED Pin (34) AMG240128B T6963C Full Specs Drawing Buy Here
4.8″ 240X128 COB (Chip-On-Board) 144.0X104.0X13.0 114.0X64.0 0.40X0.40 None/LED Pin (20&34) AMG240128D T6963C Full Specs Drawing Buy Here
5.2″ 240X64 COB (Chip-On-Board) 180.0X65.0X11.0 132.2X39.2 0.49X0.49 None/LED Pin AMG24064A T6963C Full Specs Drawing Buy Here
5.2″ 240X64 COB (Chip-On-Board) 180.0X65.0X13.5 132.0X39.0 0.49X0.49 None/LED Pin AMG24064B UC6963 Full Specs Drawing Buy Here
