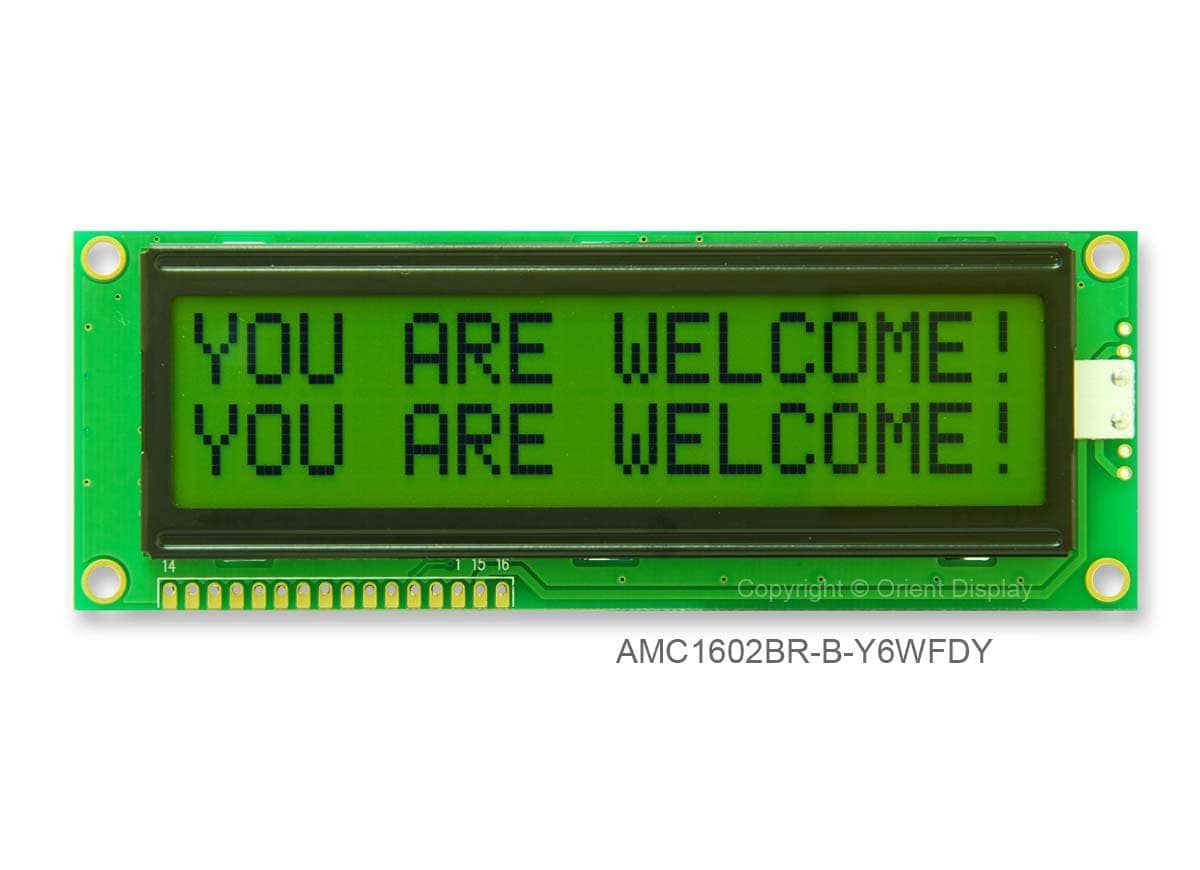

AMC1602BR-B-Y6WFDY (16×2 Character LCD Module)
$11.57CONTACT FOR VOLUME PRICING
278 in stock
Ships from Seattle- Number of Characters: 16 x 2
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $10.24 |
| 50-99 | $8.91 |
| 100-149 | $8.22 |
| 150-199 | $7.65 |
| 200- | $7.08 |
Contact us for larger volume orders and any other enquiries.
Description
A 16×2 dot matrix Character LCD Module AMC1602BR-B-Y6WFDY display in STN Positive Yellow Green LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On board with 1/16 Duty and a Controller IC ST7066U-OAor equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
16×2 Character LCD Module – AMC1602BR-B-Y6WFDY
The highest quality product at the lowest price.
- STN Positive Yellow Green
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow Green LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC1602BR-B-Y6WFDY-STL |
| Characters Displayed x Lines | 16 x 2 |
| LCD Mode | STN Positive Yellow Green |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 122.0 x 44.0 x 14.5 |
| View Area WxH (mm) | 99.0 x 24.0 |
| Character Size WxH (mm) | 4.80 x 9.66 |
| Backlight | Yellow Green LED |
| Controller | ST7066Uv22 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 44 × 122 × 14.5 mm |
| Chars x Lines | 16×2 |
| characterxlines | 16×2 |
| backlightcolor | Yellow-Green |
| displaymode | STN – Positive (Yellow Green) |
| displaytype | Character LCD |
| polarizertype | Transflective |
| touchpanel | None |
| viewingdirection | 6 o'clock |
