JAZZ-BC-W (Graphic 128x64 COG LCD Module)
HomeLCD DisplaysLCD Jazz Graphic Displays JAZZ-BC-W (Graphic 128×64 COG LCD Module)
Previous product
JAZZ-AE-R (RED LED Backlight for JAZZ A Graphic LCD)
JAZZ-AE-R (RED LED Backlight for JAZZ A Graphic LCD) $2.92
Back to products
Next product
JAZZ-AB (Evaluation / Tester / Demo Kit for JAZZ-A Modules)
JAZZ-AB (Evaluation / Tester / Demo Kit for JAZZ-A Modules) $50.00

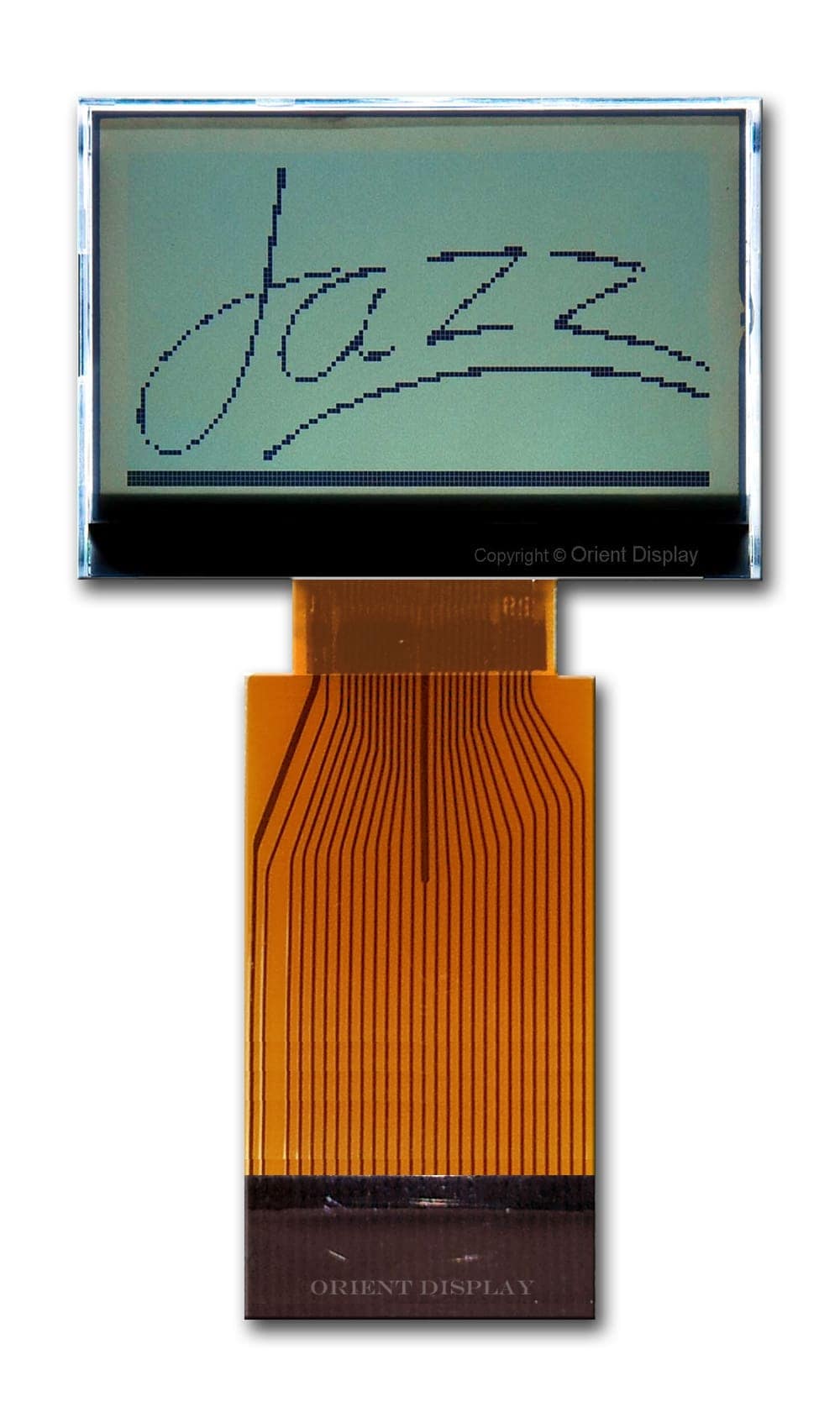

JAZZ-BC-W (Graphic 128×64 COG LCD Module)

$3.40CONTACT FOR VOLUME PRICING

373 in stock

  • JAZZ Monochrome Graphic LCD Glass Panel
  • Diagonal Dimension: 1.0 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Connection: FPC
  • IC Package Type: COG
  • Backlight: None
  • Touch Panel: None

Pricing table

QuantityUnit Price
25-49$3.04
50-99$2.67
100-149$2.48
150-199$2.32
200-$2.16

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: JAZZ-BC-W Categories: LCD Display Modules, LCD Jazz Graphic Displays, LCD Glass
Share
Facebook Email linkedin

Description

Graphic 128×64 COG LCD module JAZZ-BC-W from Orient Display

JAZZ-BC-W module is a 1.0″ monochrome 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C). It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used indoor and outdoor. JAZZ-BC-W is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7565R or equivalent with parallel interface. This is an ROHS compliant product manufactured with ISO standards and procedures.

128×64 COG LCD Modul JAZZ-BC-W

The highest quality product at the lowest price.



  • Smallest COG Graphic LCD Module with a diagonal dimension of 1″
  • White LED and Green LED backlight Colors available
  • FSTN Positive
  • 6 o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • Transflective
  • COG Type (Chip on Glass)
  • ROHS Compliant




Download Product References Below

Product Datasheet: JAZZ-BC-W

Controller Datasheet: ST7565R
Backlight Specifications Download: JAZZ-BE-W (White) or JAZZ-BE-G (Green)



Model/Series Name JAZZ-BC-W
Dots/ Resolution 128 x 64
LCD Mode FSTN Positive
Polarizer Type Transflective
Diagonal Dimension (inches) 1.0
Module Size WxHxT max(mm) 28.5 x 20.0 x 1.8 (LCD Only)
View Area WxH (mm) 26.5 x 14.0
Dot Size WxH (mm) 0.16 x 0.16
Dot Pitch WxH (mm) 0.18 x 0.18
Controller ST7565R
LCD Assembly COG (Chip on Glass)

Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.

Additional information

Weight 0.06 lbs
Dimensions 20.00 × 28.50 × 1.80 mm
backlightcolor

None

diagonal-size

1.0

displaymode

FSTN – Positive

displaytype

Graphic LCD

polarizertype

Transflective

resolution

128×64

touchpanel

None

viewingdirection

6 o'clock

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “JAZZ-BC-W (Graphic 128×64 COG LCD Module)” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery

Buy it with Exclusive Accessories

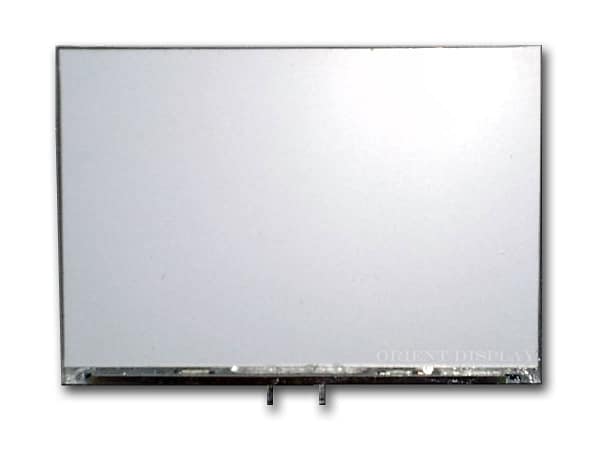

JAZZ-BE-W (WHITE LED Backlight for JAZZ B Graphic LCD)
JAZZ-BE-W (WHITE LED Backlight for JAZZ B Graphic LCD)
Compare
Close

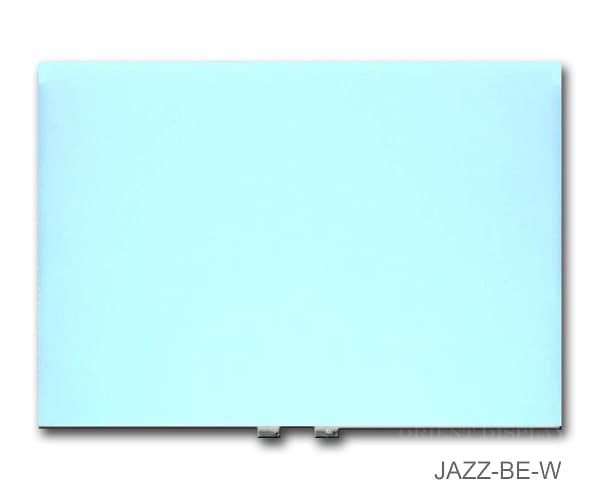

JAZZ-BE-W (WHITE LED Backlight for JAZZ B Graphic LCD)

LCD Jazz Graphic Displays, LED Backlight, LCD Display Modules
$2.08
  • JAZZ LED Backlight
  • Diagonal Dimension: 1.0 Inch
  • Backlight: White LED
  • Assembly: Pin
  • Touch Panel: None
Add to wishlist
Add to cart
Quick view
JAZZ-BE-G (GREEN LED Backlight for JAZZ B Graphic LCD)
JAZZ-BE-G (GREEN LED Backlight for JAZZ B Graphic LCD)
Compare
Close

JAZZ-BE-G (GREEN LED Backlight for JAZZ B Graphic LCD)

LCD Jazz Graphic Displays, LED Backlight, LCD Display Modules
$2.04
  • JAZZ LED Backlight
  • Diagonal Dimension: 1.0 Inch
  • Backlight: Green LED
  • Assembly: Pin
  • Touch Panel: None
Add to wishlist
Add to cart
Quick view

Related products

JAZZ-AE-B (Blue LED Backlight for JAZZ-A Graphic Module)
Compare
Close

JAZZ-AE-B (Blue LED Backlight for JAZZ-A Graphic Module)

LCD Jazz Graphic Displays, LED Backlight, LCD Display Modules
$3.11
  • JAZZ LED Backlight
  • Diagonal Dimension: 2.7 Inch
  • Backlight: Blue LED
  • Assembly: Wired Type
  • Touch Panel: None
Add to wishlist
Add to cart
Quick view
AMC0802BR-B-G6WFDW (8x2 Character LCD Module)
AMC0802BR-B-G6WFDW (8x2 Character LCD Module)
Compare
Close

AMC0802BR-B-G6WFDW (8×2 Character LCD Module)

Monochrome STN LCD, Others, LCD Display Modules
$5.69
  • Number of Characters: 8 x 2
  • LCD mode: STN Positive Gray
  • Polarizer: Transflective
  • Backlight: White LED
  • Blue Character on Gray Background
  • IC Package Type: COB
Add to wishlist
Add to cart
Quick view

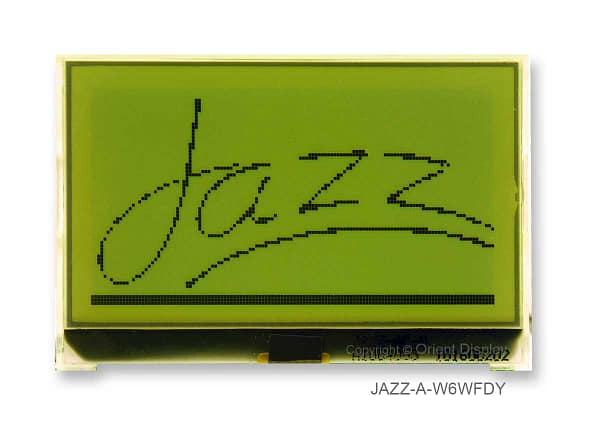

JAZZ-A-W6WFDY Module (LCD+BL, Graphic COG 128x64)
