AMG12864AR-B-Y6WFDY-AT-NV-Y (2.9″ 128×64 Graphic LCD Module)
$15.30CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
53 in stock
Ships from SeattleKey specs
- Diagonal Dimension: 2.9 Inch
- Resolution: 128 x 64 pixels
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark on Yellow Green Background
- Connection: Pin
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $15.30 | — |
| 25–49 | $14.60 | −5% |
| 50–99 | $13.90 | −9% |
| 100–149 | $13.27 | −13% |
| 150–199 | $12.88 | −16% |
| 200+ | $12.49 | −18% |
Contact us for larger volume orders and any other enquiries.
Need volume, a modified part or a lead time?
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications

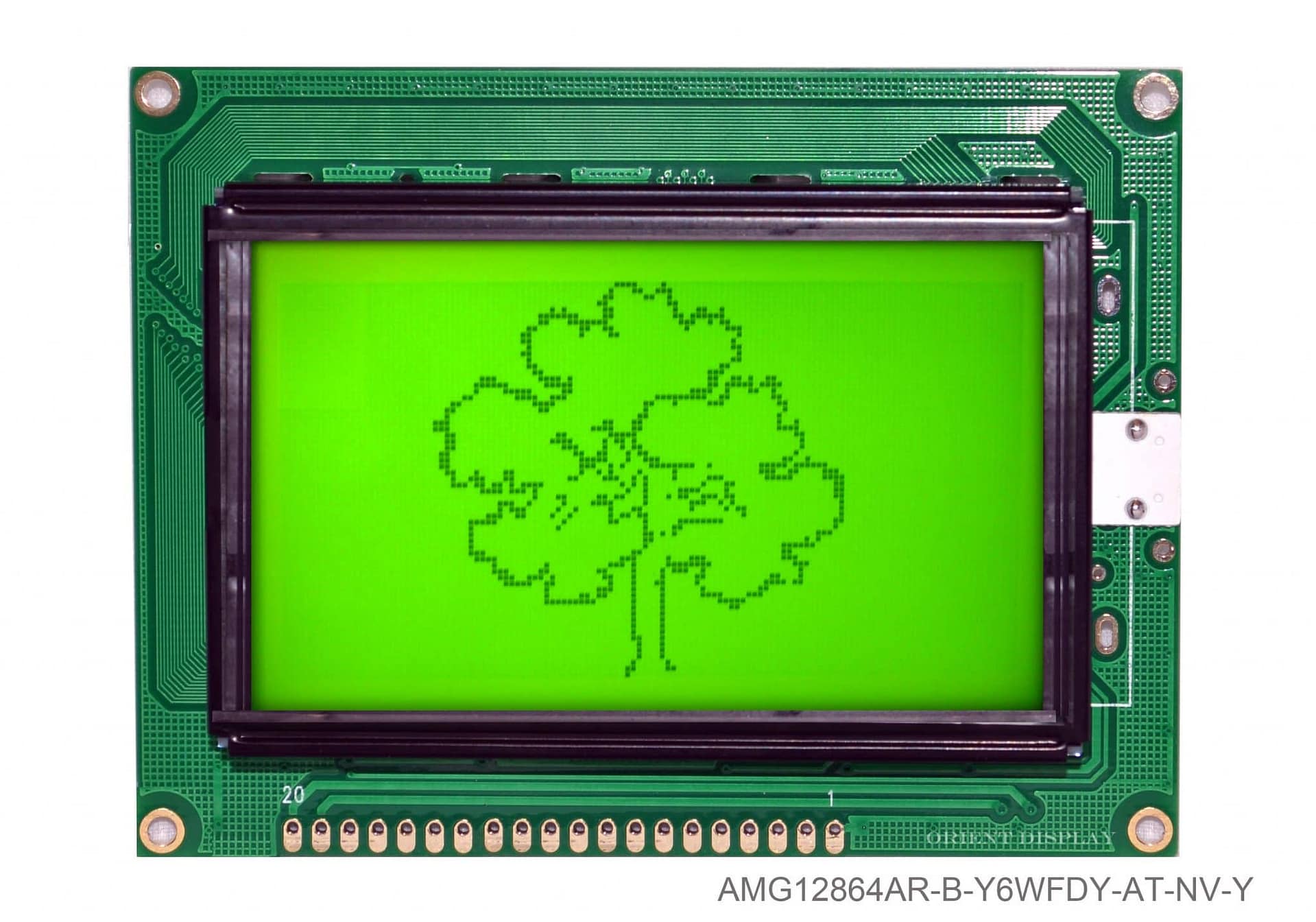

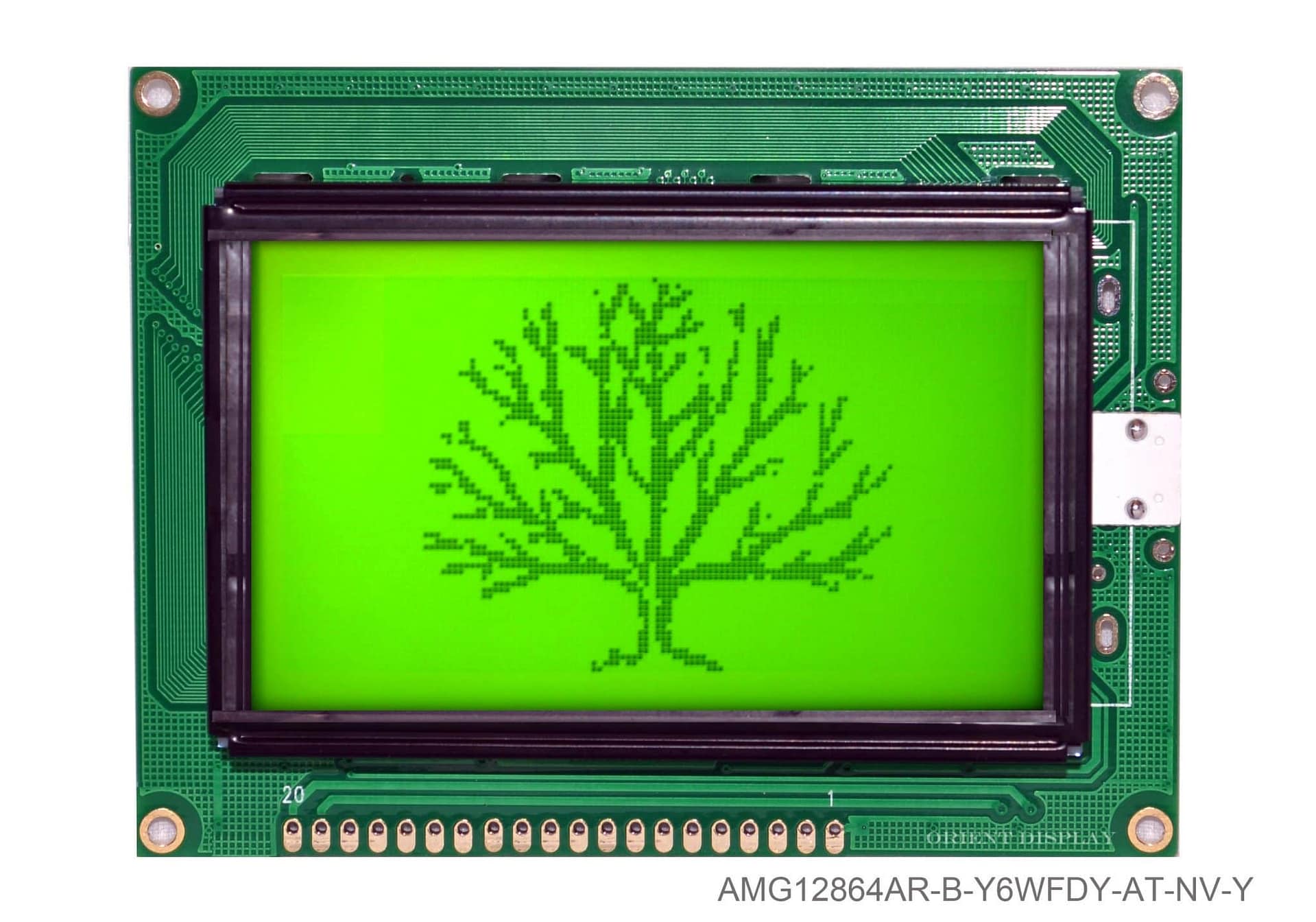

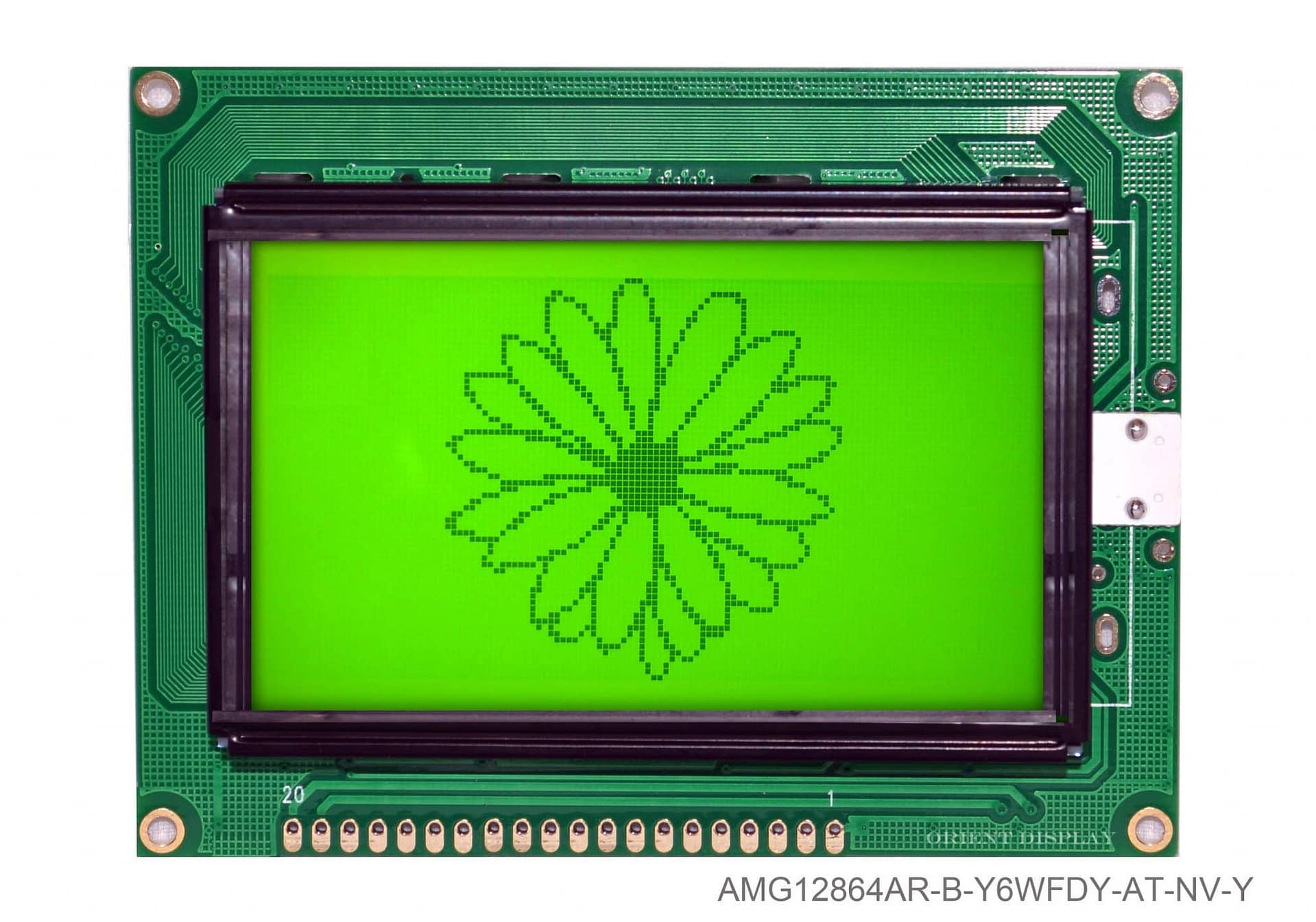

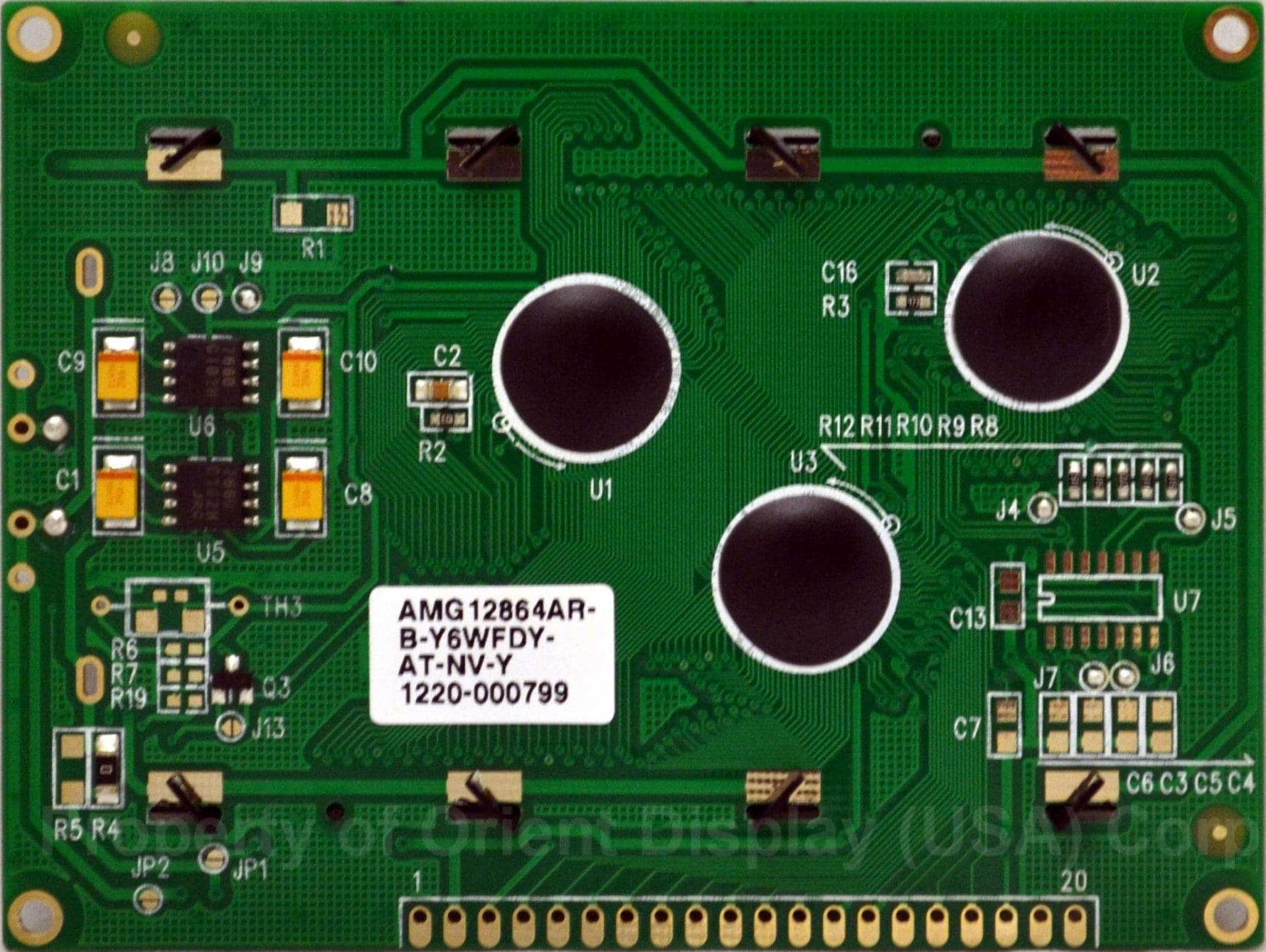

A 2.9″ monochrome, 128×64 dot matrix, COB (Chip on Board) Graphic LCD Module AMG12864AR-B-Y6WFDY-AT-NV-Y in STN Positive Yellow Green LCD Mode with Yellow Green LED Backlight. It has a Six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product has negative voltage and is assembled Chip On board with 1/64 Duty and a Controller IC S6B0107 or S6B0108 or equivalent. The interface type is Parallel. This is an ROHS compliant product manufactured with ISO standards and procedures.
- STN Positive Yellow Green
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Tep: -30°C to 80°C
- Transflectivem Polarizer
- Yellow Green LED Backlight
- COB Type (Chip on Board)
- With Negative Voltage
- ROHS Compliant

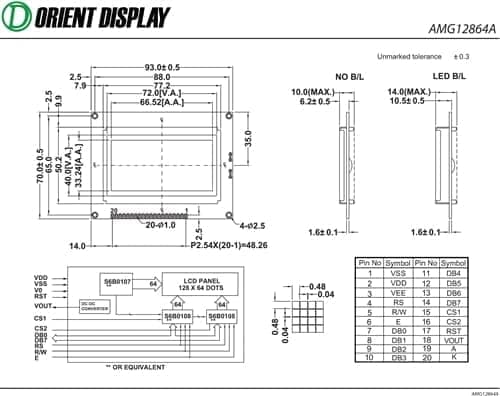

| Model/Series Name | AMG12864A |
| Dots/ Resolution | 128 x 64 |
| LCD Mode | STN Positive Yellow Green |
| Polarizer Type | Transflective |
| Diagonal Dimension (inches) | 2.9 |
| Module Size WxHxT max(mm) | 93.0 x 70.0 x 14.0 |
| View Area WxH (mm) | 72.0 x 40.0 |
| Dot Size WxH (mm) | 0.48 x 0.48 |
| Backlight | Yellow Green LED |
| Controller | S6B0107 or S6B0108 |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
| Other Features | Negative Voltage |
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 70 × 93 × 14 mm |
| Backlight color | Yellow-Green |
| Diagonal size | 2.9 |
| Display mode | STN – Positive (Yellow Green) |
| Display type | Graphic LCD |
| Polarizer type | Transflective |
| Resolution | 128×64 |
| Touch panel | None |
| Viewing direction | 6 o'clock |
