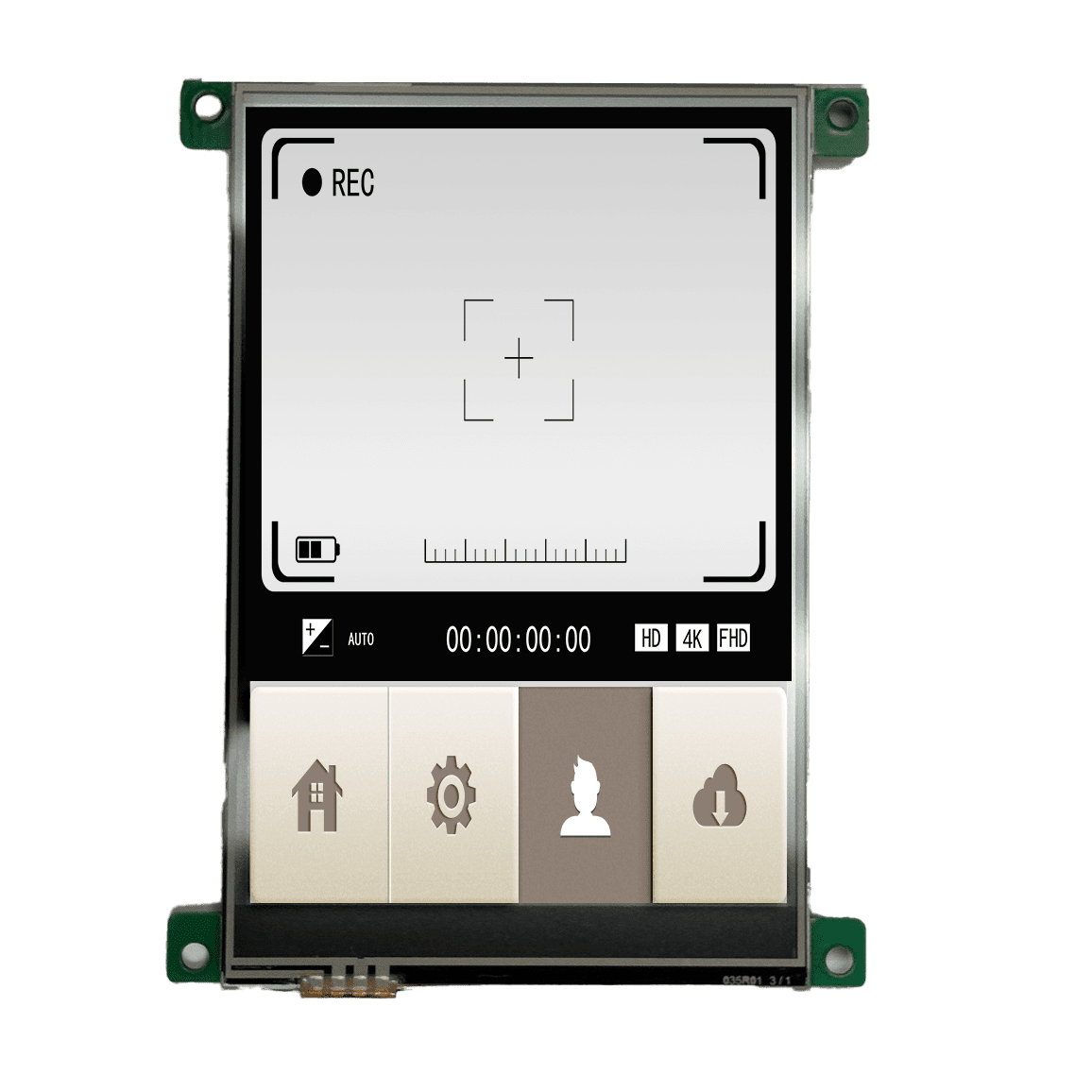

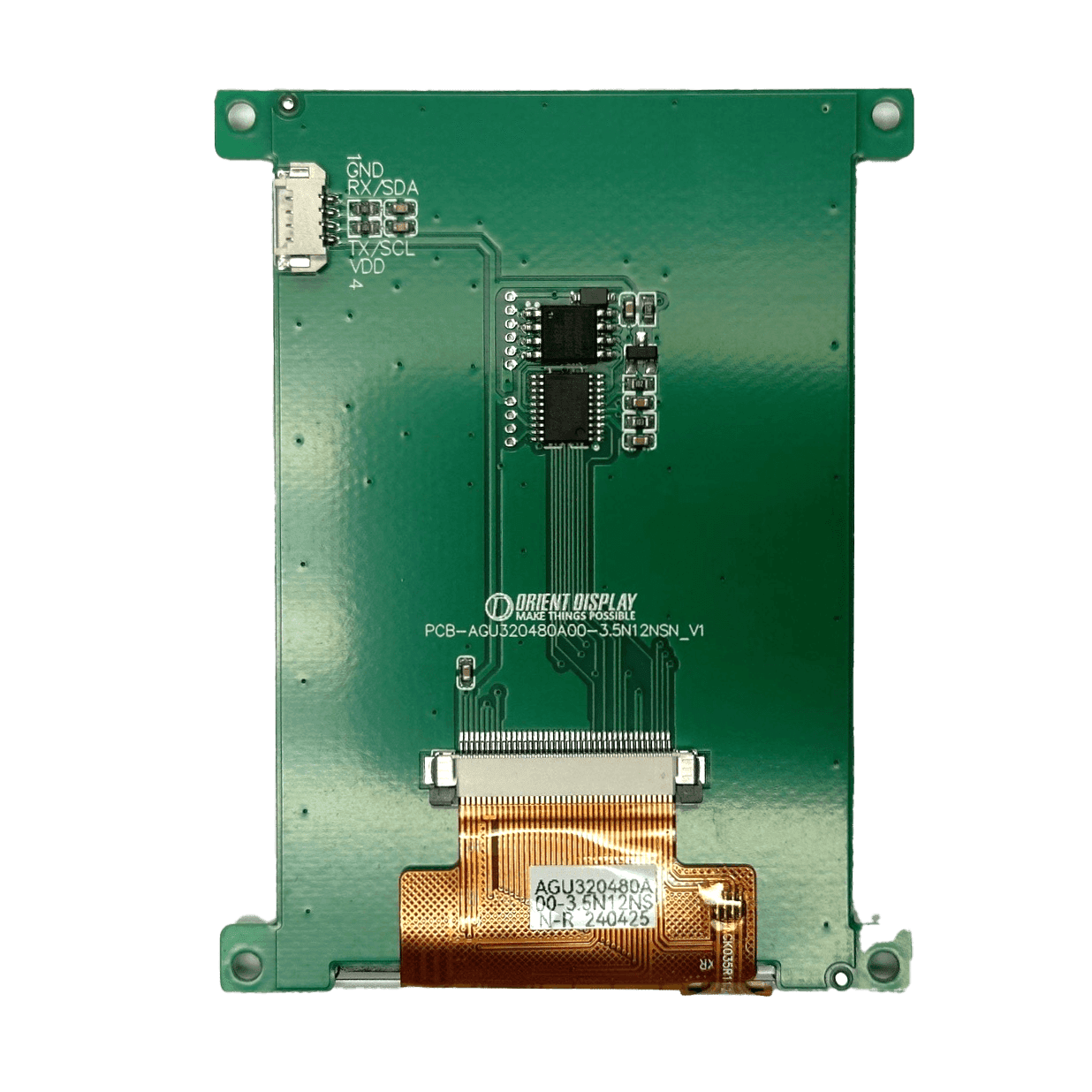

3.5″ TN TFT display with UART interface, 320×480, 250nits with Resistive Touch Panel

$20.70CONTACT FOR VOLUME PRICING

199 in stock

  • Diagonal Dimension: 3.5Inch
  • Resolution: 320 x 480 pixels
  • Luminance: 250cd/m2
  • Viewing Direction: 12 o’clock
  • Touch Panel: Resistive
  • Interface: UART
  • Optional Accessary: Accessary Kit
  • Download other documents for AGU series here: Supporting Documents and Software Tools
  • Watch Video Tutorial on Youtube

Pricing table

QuantityUnit Price
25-49$19.85
50-99$19
100-$17.69

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: AGU320480A00-3.5N12NSN-R Categories: Embedded TFT Modules, Medium Brightness TFT Panels, AGU, AGN series UART Interface, TFT with Touch Panels, Color TFT
Share
Facebook Email linkedin

Description

3.5″ TN TFT Display with UART interface, 320×480, with Resistive Touch Panel, Full Color / Normal Brightness TFT Module, Transmissive.

3.5 Inch TN TFT Display with UART Interface, 320×480 resolution, Resistive Touch Panel

The highest quality product at the lowest price. Ships from the USA.
  • 3.5″ TN TFT, 320×480 with UART interface
  • Full Color / Medium Brightness TFT Module
  • 12 o’clock Viewing Direction
  • Transmissive
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant
Download Product References Below
Drawing: AGU320480A00-3.5N12NSN-R
Controller Datasheet: ST7365P+STM32G030/NP9158+W25Q64
User Manual and Supporting Document: Download here
Tools: Download here
Other Documents: Download here

Tutorial Video: Click here to watch on our Youtube Channel

Model / Series Name AGU320480A00-3.5N12NSN-R
Diagonal Dimension (inch) 3.5
Dots WxH 320 x 480
Module Size WxHxD max (mm) 65.08* 84.71* 8.60mm (PCB)
Display Mode TN TFT / Transmissive / Normal Black
IC
ST7365P+STM32G030/NP9158+W25Q64
Interface Type UART interface
Logic Power Supply Voltage 3.3V
Backlight White LED
Luminance 250 cd/m2
Touch Panel Resistive

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

    Additional information

    Weight 0.015 lbs
    Dimensions 34 × 43 × 3 mm
