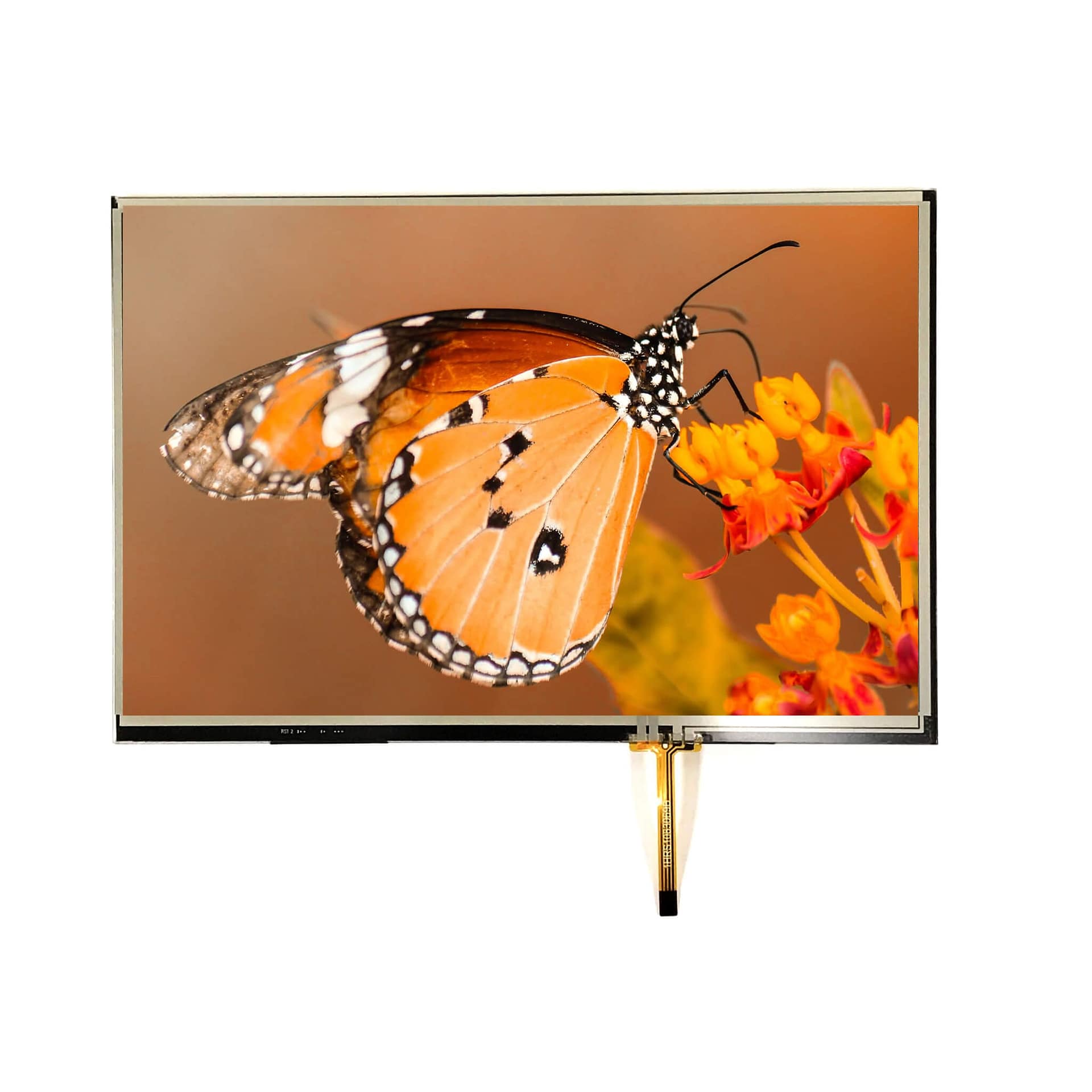

10.1″ Sunlight Readable IPS, 1280×800, 800 Nits with Resistive Touch Panel
$131.62CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
Out of stock · we can still source it
Key specs
- Model / Series Name: AFY1280800A0-10.1INTH-R
- Diagonal Dimension (inch): 10.1
- Dots WxH: 1280 x 800
- Module Size WxHxD max (mm): 228.85 x 152.74 x 6.70
- Display Mode: IPS / Normal black / Transmissive
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–49 | $131.62 | — |
| 50+ | $120.32 | −9% |
Email when stock available
Request this part
Tell us how many you need. We reply with price and lead time, and email you when stock lands.
Request sent
Specifications
A simple 10.1″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 1280 x (RGB) x 800 dots.
- 10.1″ IPS, 1280 x (RGB) x 800
- High Brightness / Sunlight Readable IPS
- Transmissive / Normal Black / Resistive Touch Panel
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFY1280800A0-10.1INTH-R |
| Diagonal Dimension (inch) | 10.1 |
| Dots WxH | 1280 x 800 |
| Module Size WxHxD max (mm) | 228.85 x 152.74 x 6.70 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | HX8695-A HX8288-A |
| Interface Type | LVDS |
| Logic Power Supply Voltage | 3.3 V |
| Backlight | 42 Chip White LED, lf = 180mA |
| Luminance | 800 cd/m2 |
| Touch Panel | Resistive |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.82 lbs |
|---|---|
| Dimensions | 233 × 155 × 6 mm |
| Backlight color | White |
| Diagonal size | 10.1 |
| Display type | TFT – IPS |
| Polarizer type | Transmissive |
| Resolution | 1280×800 |
| Touch panel | Resistive Touch Panel |
| Viewing direction | All |
| Interface | LVDS |
