Orient Display offers Embedded TFT modules with different interfaces including Parallel, SPI, UART, and HDMI. Browse below to find the best suitable display for your projects!
Quick Jump To:
ACN Series Parallel Interface
AGU, AGN Series UART Interface
P-series SPI Interface
Arduino series SPI Interface (Our Arduino series also have OLED and Character displays, Check out the list here!)
Raspberry Pi series HDMI Interface
ACN series Parallel Interface
| Size (inch) | Pixels | Module Size(mm) | Touch | B/L Brightness | Interface | Color | Model | Stock |

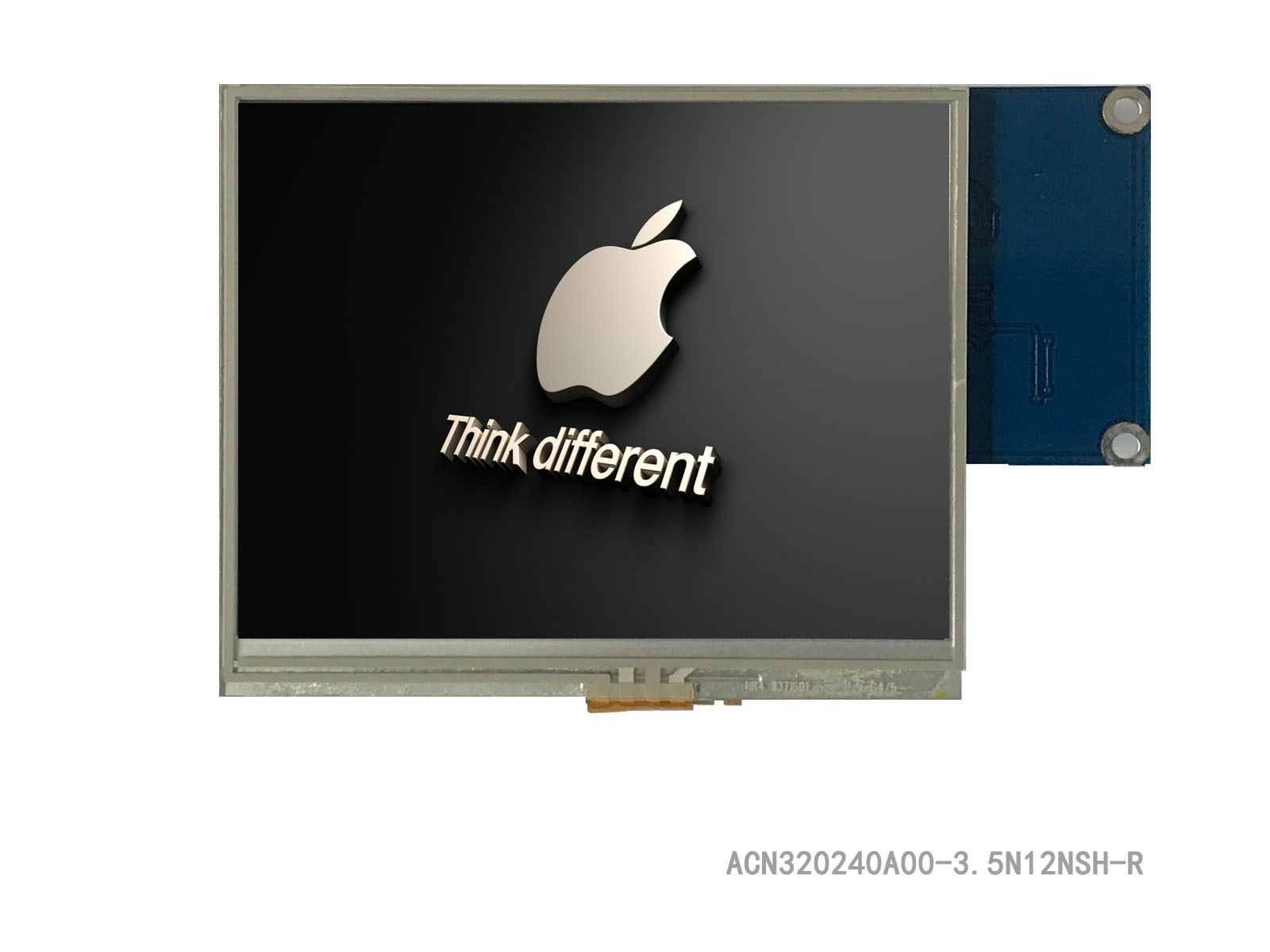

| 3.5 | 320×240 | 76.9 x 63.9 x 7.75 | 4-wire RTP | 600nit | Parallel | 16.7M | ACN320240A00-3.5N12NSH-R | Buy Here |
| 4.3 | 480×272 | 105.5 x 67.2 x 7.55 | 4-wire RTP | 260nit | Parallel | 16.7M | ACN480272A01-4.3N12NSM-R | Buy Here |
| 7.0 | 800×480 | 164.9 x 100 x 10.4 | 4-wire RTP | 320nit | Parallel | 16.7M | ACN800480A00-7.0N12NSM-R | Buy Here |
AGU, AGN series UART Interface
| Size (inch) | Pixels | Module Size(mm) | B/L Brightness | Flash Memory | Model | Stock |
| 1.44 | 128×128 | 44.36×39.93×7.90 | 240nits | 16M | AGU128128A00-1.44N6NSN | Buy Here |
| 1.77 | 240×320 | 46.70×46.70×7.80 | 400nits | 32M | AGU240320A00-1.77INSM | Buy Here |
| 2.0 | 240×320 | 47.80×52.10×7.95 | 480nits | 32M | AGU240320A00-2.0INSM | Buy Here |
| 2.4 | 240×320 | 62.00×69.20×7.76 | 460nits | 32M | AGU240320A00-2.4N6NSM | Buy Here |

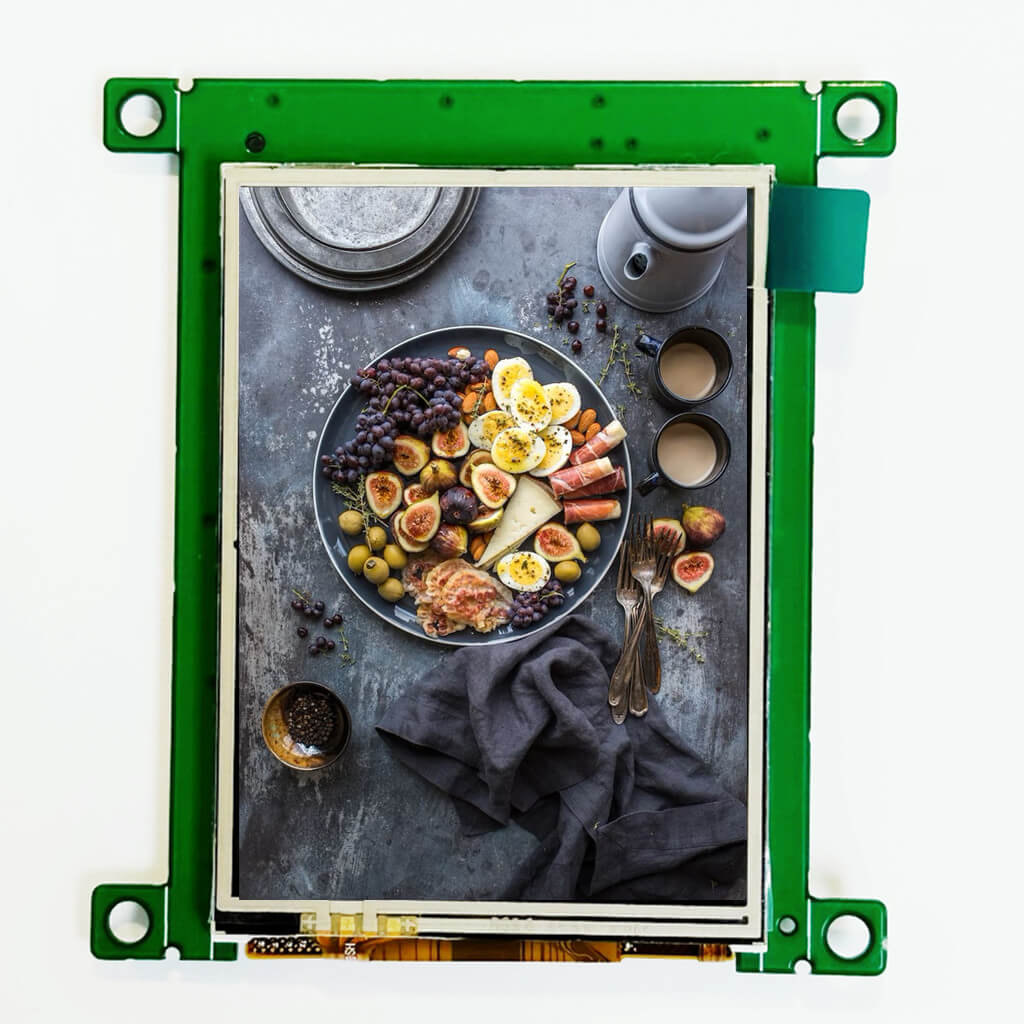

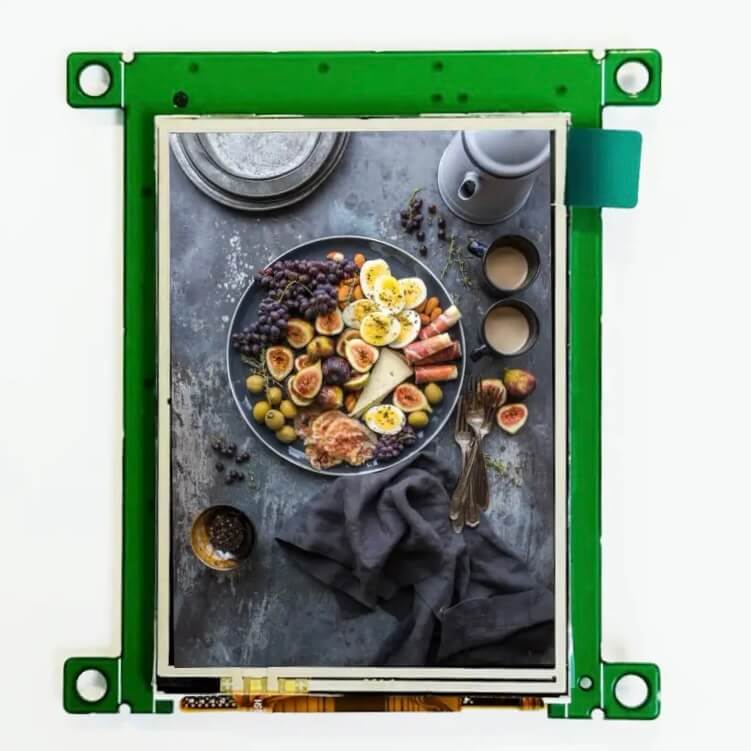

| 2.4 | 240×320 | 62.00×69.20×9.01 | 370nits | 32M | AGU240320A00-2.4N6NSM-R | Buy Here |
| 2.8 | 240×320 | 62.00×69.20×9.70 | 460nits | 32M | AGU240320A00-2.8N6NSM | Buy Here |

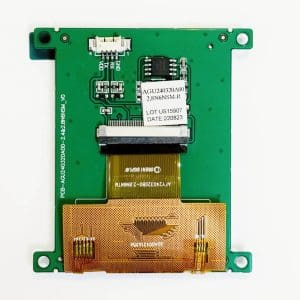

| 2.8 | 240×320 | 62.00×69.20×8.80 | 370nits | 32M | AGU240320A00-2.8N6NSM-R | Buy Here |
| Size (inch) | Pixels | Module Size(mm) | Touch | B/L Brightness | Interface | Color | Model | Stock |
| 3.5 | 320×240 | 92.96 x 70.17 x 14.0 | 4-wire Resistive | 600nit | UART RS232 | 65K | AGN320240A01-3.5N12NSH-R | Buy Here |
| 4.3 | 480×272 | 121.9 x 74.7 x 8.5 | Capacitive | 850nit | UART RS232 | 65K | AGN480272A00-4.3INSH-C | Buy Here |
| 4.3 | 800×480 | 121.9 x 74.7 x 8.5 | Capacitive | 650nit | UART RS232 | 65K | AGN800480A00-4.3INSH-C | Buy Here |

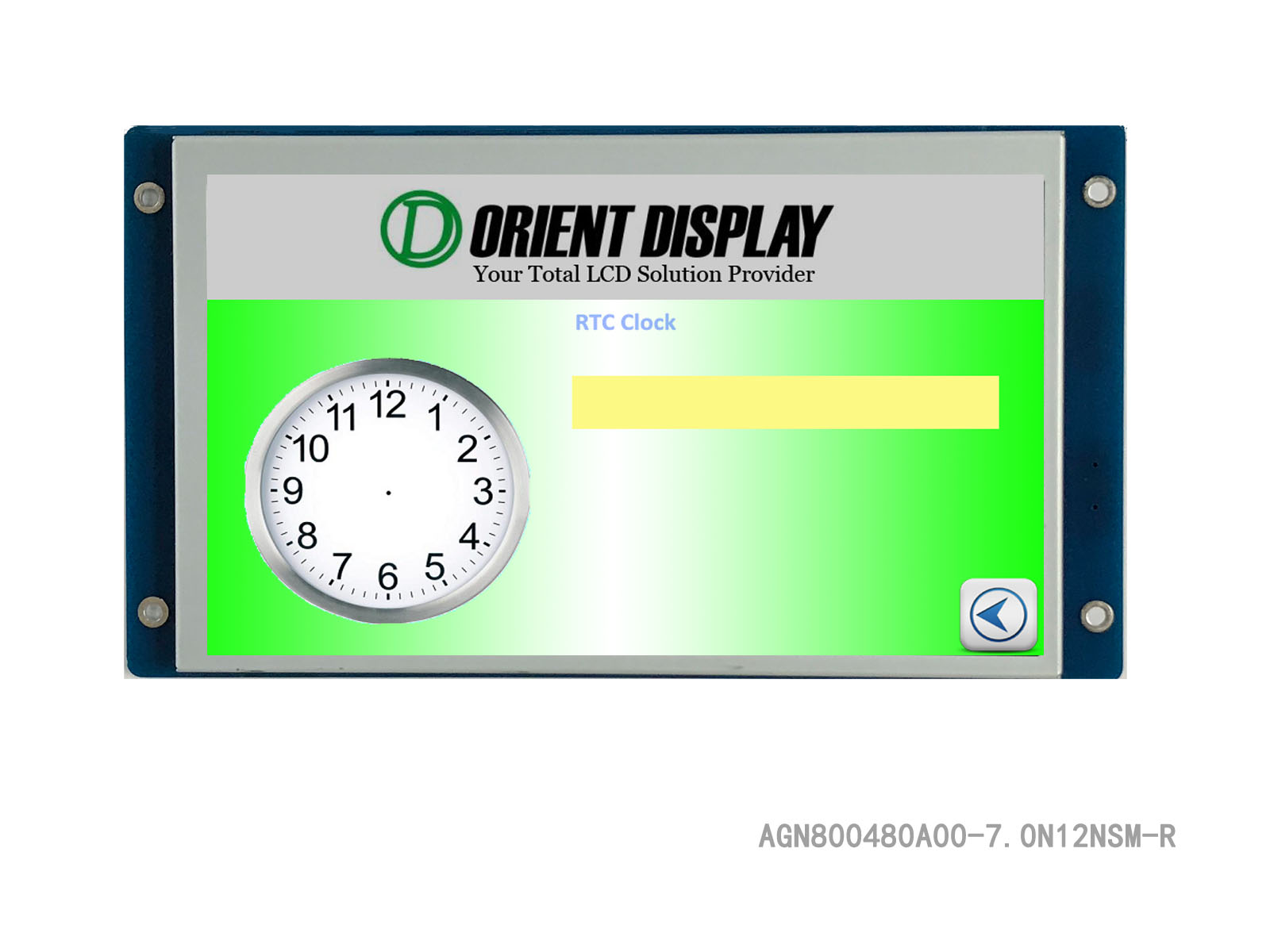

| 7.0 | 800×480 | 190.4 x 105.2 x 15.0 | 4-wire Resistive | 320nit | UART RS232 | 65K | AGN800480A00-7.0N12NSM-R | Buy Here |
P-series SPI Interface
| Size (inch) | Pixels | Module Size(mm) | B/L Brightness | Flash Memory | Model (User Manual) | Stock |
| 3.5 | 320×240 | 76.9 x 63.9 x 10.7 | 495nit | 64 Mbit flash | AFY320240B0-3.5N12NTM-SPI | Buy Here |
| 4.3 | 480×272 | 105.5 x 67.2 x 10.45 | 472nit | 64 Mbit flash | AFY480272B0-4.3N12NTM-SPI | Buy Here |
| 5.0 | 800×480 | 120.7 x 75.8 x 10.7 | 427nit | 128 Mbit flash | AFY800480B1-5.0N12NTM-SPI | Buy Here |
| 7.0 | 800×480 | 164.9 x 100.0 x 11.0 | 472nit | 128 Mbit flash | AFY800480B1-7.0N12NTM-SPI | Buy Here |
Arduino series SPI Interface
Our Arduino series also have OLED and Character displays, Check out the list here!
| Size | Pixels | Brightness (cd/m2) |
Interface | Module Size (mm) | Model | Driver IC | Stock |

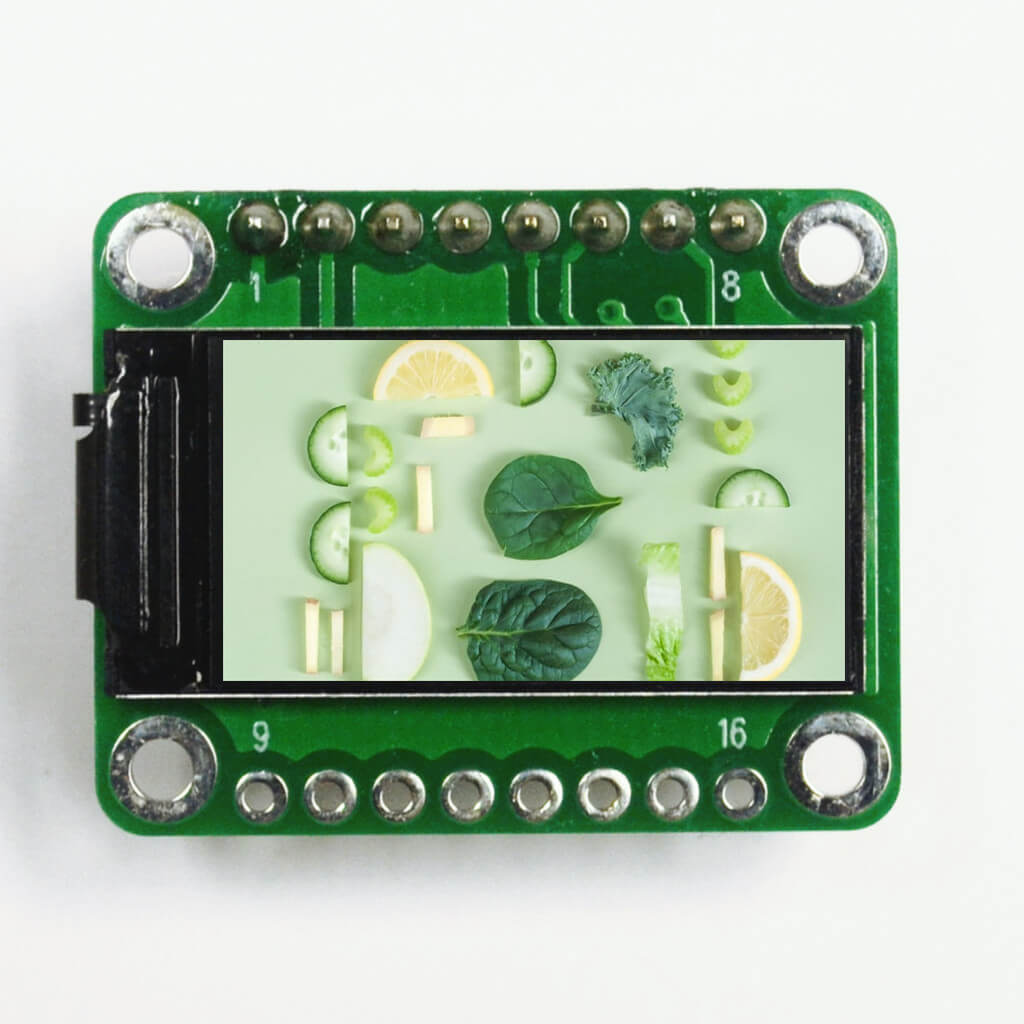

| 0.96 | 160×80 | 300 | IPS TFT/4-wire SPI/Compatible Arduino | 30.0 x 24.0 x 5.0 | AFL16080A0-0.96INTM-ANO | ST7735S | Buy Here |
| 1.14 | 240×135 | 300 | IPS TFT/4-wire SPI/Compatible Arduino | 33.0 x 28.0 x 5.0 | AFL240135A0-1.14INTM-ANO | ST7789V | Buy Here |
| 1.3 | 240×240 | 300 | IPS TFT/4-wire SPI/Compatible Arduino | 31.0 x 45.0 x 5.0 | AFL240240A0-1.3INTM-ANO | ST7789V | Buy Here |
| 1.44 | 128×128 | 300 | TN TFT/4-wire SPI/Compatible Arduino | 33.0 x 48.0 x 5.0 | AFL128128A0-1.44N12NTM-ANO | ST7735S | Buy Here |
| 1.54 | 240×240 | 300 | IPS TFT/4-wire SPI/Compatible Arduino | 35.0 x 50.0 x 5.0 | AFL240240A0-1.54INTM-ANO | ST7789V | Buy Here |
| 1.77 | 128×160 | 300 | TN TFT/4-wire SPI/Compatible Arduino | 35.0 x 65.0 x 5.0 | AFL128160A0-1.77N12NTM-ANO | ST7735S | Buy Here |
| 2.0 | 240×320 | 300 | IPS TFT/4-wire SPI/Compatible Arduino | 39.0 x 64.0 x 5.0 | AFL240320A0-2.0INTM-ANO | ST7789V | Buy Here |
| 2.3 | 320×240 | 300 | TN TFT/4-wire SPI/Compatible Arduino | 53.0 x 58.0 x 6.0 | AFL320240A0-2.3N12NTM-ANO | ILI9342C | Buy Here |
| 2.4 | 240×320 | 300 | TN TFT/4-wire SPI/Compatible Arduino | 45.0 x 73.0 x 6.0 | AFL240320A0-2.4N12NTM-ANO | ST7789V | Buy Here |
| 2.8 | 240×320 | 300 | TN TFT/4-wire SPI/Compatible Arduino | 52.0 x 83.0 x 6.0 | AFL240320A0-2.8N12NTM-ANO | ST7789V | Buy Here |
| 3.2 | 240×320 | 300 | TN TFT/4-wire SPI/Compatible Arduino | 56.0 x 90.0 x 6.0 | AFL240320A0-3.2N12NTM-ANO | ST7789V | Buy Here |
Raspberry Pi series HDMI Interface
| Size (inch) | Pixels | Touch Panel | Brightness | Interface | Module Size (mm) | Model | Stock |
| 4.3 | 800×480 | Capacitive | 680 | HDMI & USB, Compatible Raspberry Pi | 105.5 x 83.4 | AFK800480A0-4.3INTH-C-HDMI | Buy Here |
| 5.0 | 800×480 | Resistive | 800 | VGA, HDMI & USB, Compatible Raspberry Pi | 120.7 x 92 | AFY800480A0-5.0INTH-R-HDMI | Buy Here |
| 7.0 | 1024×600 | Capacitive | 900 | HDMI & USB, Compatible Raspberry Pi | 164.8 x 116.2 | AFY1024600A2-7.0INTH-C-HDMI | Buy Here |
| 10.1 | 1280×800 | Capacitive | 900 | VGA, HDMI & USB, Compatible Raspberry Pi | 232.9 x 154.6 | AFY1280800A1-10.1INTH-C-HDMI | Buy Here |
